Synchro Mounting Clamps
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number
In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions available upon request
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number
In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions available upon request
|
Synchro Mounting Clamps
Material:
Made in the USA Contact: vic@omnicomponentscorp.com |
Synchro Mounting Clamps
|
303 Stainless Steel
|
Allied Devices
DL230 DL231 DL232 DL236 |
WM Berg
SM-20 SM-21 SM-22 SM-23 |
PIC Design
L2-30 L2-31 L2-32 L2-36 |
Omnicomponents
SMC01 SMC02 SMC03 SMC04 |
A
.093 .156 .272 - |
B
.047 .110 .210 - |
Aluminum Anodized
|
Allied Devices
DL233 DL234 DL235 DL237 |
WM Berg
SM-20-A SM-21-A SM-22-A SM-23-A |
PIC Design
L2-33 L2-34 L2-35 L2-37 |
Omnicomponents
SMC01A SMC02A SMC03A SMC04A |
A
.093 .156 .272 - |
B
.047 .110 .210 - |
Synchro Mount Clamps
|
|
Allied Devices
DL238 DL239 DL240 DL241 |
WM Berg
SM-47 SM-48 SM-49 SM-50 |
Omnicomponents
SMC05 SMC06 SMC07 SMC08 |
C
.057 .088 .104 .117 |
|
Synchro Mounting Clamps
Material:
Made in the USA Contact: vic@omnicomponentscorp.com |
Synchro Mounting Clamps
|
303 Stainless Steel
|
Allied Devices
DL242 DL243 DL244 DL245 |
WM Berg
SM-43 SM-44 SM-45 SM-46 |
Omnicomponents
SMC09 SMC10 SMC11 SMC12 |
ID
.103/.109 .127/.133 .127/.133 .127/.133 |
A
.011 .031 .062 .062 |
B
.187 .250 .310 .370 |
Drill
#37 #30 #30 #30 |
Aluminum Anodized
|
Allied Devices
DL242 DL243 DL244 DL245 |
WM Berg
SM-43-A SM-44-A SM-45-A SM-46-A |
Omnicomponents
SMC09A SMC10A SMC11A SMC12A |
ID
.103/.109 .127/.133 .127/.133 .127/.133 |
A
.011 .031 .062 .062 |
B
.187 .250 .310 .370 |
Drill
#37 #30 #30 #30 |
|
Synchro Mounting Clamps
Material:
Contact: vic@omnicomponentscorp.com |
|
|
WM Berg
SQ-27 SQ-28 SQ-29 SQ-30 SQ-31 SQ-32 |
Omnicomponents
SMCL13 SMCL14 SMCL15 SMCL16 SMCL17 SMCL18 |
A
.125 .187 .250 .125 .187 .250 |
B
.080 .110 .156 .080 .110 .156 |
C
.150 .172 .250 .150 .172 .250 |
D
.093 .113 .138 .093 .113 .138 |
E
.028 .032 .062 .028 .032 .062 |
F
.070 .093 .255 .070 .093 .255 |
G
.192 .289 .475 .192 .289 .475 |
Thread
#2-56 #4-40 #6-32 #2-64 #4-48 #6-40 |
|

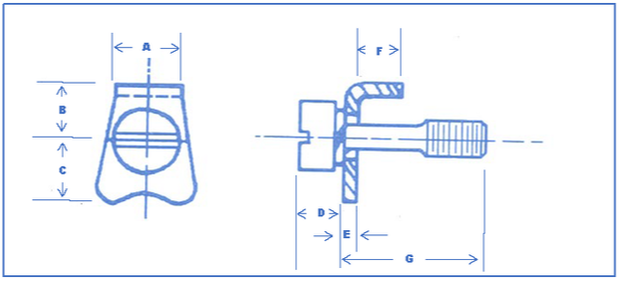

Synchro Mounting Clamps Material:
Made in the USA Contact: vic@omnicomponentscorp.com Top & Reverse Mount |
|
|
Allied Devices
DL320T DL321T DL322T DL323T DL324T DL31T DL32T DL33T DL34T DL35T DL36T DL37T DL38T DL39T DL310T DL311T DL312T DL330T DL331T |
PIC Design
L3-20 L3-22 L3-23 L3-24 L3-1 L3-2 L3-3 L3-4 L3-6 L3-7 L3-8 L3-9 L3-10 L3-11 L3-12 L3-30 L3-31 |
WM Berg
SQ-1 SQ-2 SQ-3 SQ-4 SQ-5 SQ-6 SQ-7 SQ-8 SQ-9 SQ-10 SQ-11 SQ-12 SQ-13 SQ-14 SQ-15 SQ-16 SQ-17 SQ-18 SQ-19 SQ-20 SQ-26 |
Omnicomponents
SMCN19 SMCN20 SMCN21 SMCN22 SMCN23 SMCN24 SMCN25 SMCN26 SMCN27 SMCN28 SMCN29 SMCN30 SMCN31 SMCN32 SMCN33 SMCN34 SMCN35 SMCN36 SMCN37 SMCN38 SMCN39 |
A
.071 .087 .102 .133 .165 .071 .102 .112 .125 .141 .133 .143 .156 .175 .196 .288 .312 .437 .125 .156 .187 |
B
.053 .053 .053 .053 .053 .068 .068 .068 .068 .068 .068 .068 .068 .068 .068 .068 .068 .110 - - - |
C
.031 .047 .062 .093 .125 .031 .062 .062 .062 .078 .093 .093 .093 .125 .156 ,225 .250 .250 .062 .093 .125 |
D
.040 .040 .040 .040 .040 .040 .040 .050 .063 .063 .040 .050 .063 .050 .040 .063 .063 .187 .063 .063 .063 |
E
.265 .265 .265 .265 .265 .390 .390 .390 .390 .390 .390 .390 .390 .390 .390 .390 .390 .625 .390 .390 .390 |
F
.091 .091 .091 .091 .091 .125 .125 .125 .125 ,125 .125 .125 .125 .125 .125 .125 .187 .187 .125 .125 .125 |
G
1/4 1/4 1/4 5/16 5/16 5/16 5/16 3/8 3/8 3/8 3/8 3/8 3/8 3/16 3/8 7/16 5/8 7/8 - - - |
Screw
#2-56 #2-56 #2-56 #2-56 #2-56 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #4-40 #10-32 #4-40 #4-40 #4-40 |
