Precision Captive Screws
Use Omnicomponents' Part Numbers or Reference Any Manufacturers' Part Number In Your Request For Quote Allied Devices/WM Berg/McMaster Carr/PIC Design/Omnicomponents Part Number Cross-Reference Alternate materials and dimensions available upon request |
|
|
Precision Captive Screws
Material: 303SS Made in the USA Contact: vic@omnicomponentscorp.com |
Precision Captive Screws
|
Slotted Head
|
Allied
DY91 DY92 DY93 DY94 DY95 DY96 DY97 DY98 DY99 DY910 |
Berg
Z12-1 Z12-2 Z12-3 Z12-4 Z12-5 Z12-6 Z12-7 Z12-8 Z12-9 Z12-10 |
PIC
Y9-1 Y9-2 Y9-3 Y9-4 Y9-5 Y9-6 Y9-7 Y0-8 Y9-9 Y9-10 |
Omnicomponents
SCS01 SCS02 SCS03 SCS04 SCS05 SCS06 SCS07 SCS08 SCS09 SCS10 |
UL
.281 .343 .312 .375 .437 .406 .468 .531 .531 .593 |
TL
.187 .187 .218 .218 .218 .250 .250 .250 .312 .312 |
HL
1/8 1/8 1/8 1/8 1/8 5/32 5/32 5/32 3/16 3/16 |

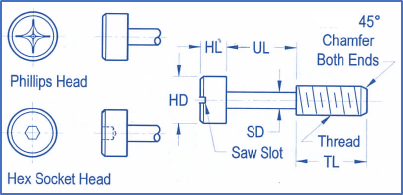

HD
1/4 1/4 9/32 9/32 9/32 5/16 5/16 5/16 3/8 3/8 |
SD
.072 .072 .086 .086 .086 .114 .114 .114 .136 .136 |
T
#4-40 #4-40 #6-32 #6-32 #6-32 #8-32 #8-32 #8-32 #10-32 #10-32 |
KS
5/64 5/64 5/64 5/64 5/64 3/32 3/32 3/32 1/8 1/8 |
Hex Socket Head
|
Allied Devices
DY91H DY92H DY93H DY94H DY95H DY96H DY97H DY98H DY99H DY910H |
WM Berg
Z12-1-H Z12-2-H Z12-3-H Z12-4-H Z12-5-H Z12-6-H Z12-7-H Z12-8-H Z12-9-H Z12-10-H |
Omnicomponents
HCS01 HCS02 HCS03 HCS04 HCS05 HCS06 HCS07 HCS08 HCS09 HCS10 |
UL
.281 .343 .312 .375 .437 .406 .468 .531 .531 .593 |
TL
.187 .187 .218 .218 .218 .250 .250 .250 .312 .312 |
HL
1/8 1/8 1/8 1/8 1/8 5/32 5/32 5/32 3/16 3/16 |
HD
1/4 1/4 9/32 9/32 9/32 5/16 5/16 5/16 3/8 3/8 |
SD
.072 .072 .086 .086 .086 .114 .114 .114 .136 .136 |
T
#4-40 #4-40 #6-32 #6-32 #6-32 #8-32 #8-32 #8-32 #10-32 #10-32 |
KS
5/64 5/64 5/64 5/64 5/64 3/32 3/32 3/32 1/8 1/8 |
Phillips Head
|
Allied Devices
DY91P DY92P DY93P DY94P DY95P DY96P DY97P DY98P DY99P DY910P |
WM Berg
Z12-1-P Z12-2-P Z12-3-P Z12-4-P Z12-5-P Z12-6-P Z12-7-P Z12-8-P Z12-9-P Z12-10-P |
Omnicomponents
PCS01 PCS02 PCS03 PCS04 PCS05 PCS06 PCS07 PCS08 PCS09 PCS10 |
UL
.281 .343 .312 .375 .437 .406 .468 .531 .531 .593 |
TL
.187 .187 .218 .218 .218 .250 .250 .250 .312 .312 |
HL
1/8 1/8 1/8 1/8 1/8 5/32 5/32 5/32 3/16 3/16 |
HD
1/4 1/4 9/32 9/32 9/32 5/16 5/16 5/16 3/8 3/8 |
SD
.072 .072 .086 .086 .086 .114 .114 .114 .136 .136 |
T
#4-40 #4-40 #6-32 #6-32 #6-32 #8-32 #8-32 #8-32 #10-32 #10-32 |
KS
5/64 5/64 5/64 5/64 5/64 3/32 3/32 3/32 1/8 1/8 |
