64 Pitch Delrin® Spur Gears
Use Omnicomponents' Part Numbers or Reference Any Manufacturers' Part Number In Your Request For Quote Allied Devices/WM Berg/PIC Design/Omnicomponents Part Number Cross-Reference |
|
64 Pitch Delrin® Spur Gears

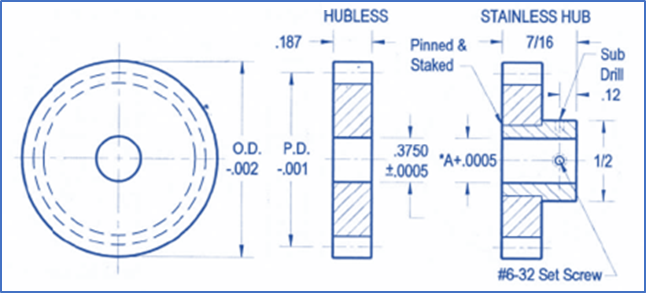

Hubless Bore: 3/8" Face: 3/16" 303SS Pin Hub *A (Bore)
20˚ Pressure Angle AGMA 10 Made in the USA |
64 Pitch Delrin® Spur Gears
|
|
Gear Formulae
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch PD = N/DP Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500 20/16=1.2500 Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch (N+2)/DP Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375 (20+2)/16=1.375 |
64 Pitch Hubless Delrin® Spur Gears
|
Allied Devices
DAB22T36 DAB22T38 DAB22T40 DAB22T42 DAB22T44 DAB22T48 DAB22T50 DAB22T56 DAB22T60 DAB22T64 DAB22T72 DAB22T74 DAB22T80 DAB22T84 DAB22T90 DAB22T96 DAB22T100 DAB22T112 DAB22T120 DAB22T127 DAB22T144 DAB22T152 DAB22T160 DAB22T168 DAB22T176 DAB22T184 |
WM Berg
F64D5-36 F64D5-37 F64D5-38 F64D5-40 F64D5-42 F64D5-44 F64D5-46 F64D5-48 F64D5-50 F64D5-56 F64D5-60 F64D5-64 F64D5-72 F64D5-74 F64D5-80 F64D5-84 F64D5-88 F64D5-90 F64D5-96 F64D5-100 F64D5-112 F64D5-120 F64D5-127 F64D5-128 F64D5-144 F64D5-152 F64D5-160 F64D5-168 F64D5-176 F64D5-184 F64D5-192 F64D5-224 |
PIC Design
AB22-36 AB22-37 AB22-38 AB22-40 AB22-42 AB22-44 AB22-46 AB22-48 AB22-50 AB22-56 AB22-60 AB22-64 AB22-72 AB22-74 AB22-80 AB22-84 AB22-88 AB22-90 AB22-96 AB22-100 AB22-112 AB22-120 AB22-127 AB22-128 AB22-144 |
Omnicomponents
64D15H36 64D15H37 64D15H38 64D15H40 64D15H42 64D15H44 64D15H46 64D15H48 64D15H50 64D15H56 64D15H60 64D15H64 64D15H72 64D15H74 64D15H80 64D15H84 64D15H88 64D15H90 64D15H96 64D15H100 64D15H112 64D15H120 64D15H127 64D15H128 64D15H144 64D15H152 64D15H160 64D15H168 64D15H176 64D15H184 64D15H192 64D15H224 |
64 Pitch Delrin® Spur Gears w/ 303SS Pin Hub
|
Allied Devices
DAB23T36 DAB24T36 DAB23T38 DAB24T38 DAB23T40 DAB24T40 DAB23T42 DAB24T42 DAB23T44 DAB24T44 DAB23T48 DAB24T48 DAB23T50 DAB24T50 DAB23T56 DAB24T56 DAB23T60 DAB24T60 DAB23T64 DAB24T64 DAB23T72 DAB24T72 DAB23T74 DAB24T74 DAB23T80 DAB24T80 DAB23T84 DAB24T84 DAB23T90 DAB24T90 DAB23T96 DAB24T96 DAB23T100 DAB24T100 DAB23T112 DAB24T112 DAB23T120 DAB24T120 DAB23T127 DAB24T127 DAB23T144 DAB24T144 DAB23T152 DAB24T152 DAB23T160 DAB24T160 DAB23T168 DAB24T168 DAB23T176 DAB24T176 DAB23T184 DAB24T184 |
WM Berg
P64D21X-36 P64D28X-36 P64D21X-37 P64D28X-37 P64D21X-38 P64D28X-38 P64D21X-40 P64D28X-40 P64D21X-42 P64D28X-42 P64D21X-44 P64D28X-44 P64D21X-46 P64D28X-46 P64D21X-48 P64D28X-48 P64D21X-50 P64D28X-50 P64D21X-56 P64D28X-56 P64D21X-60 P64D28X-60 P64D21X-64 P64D28X-64 P64D21X-72 P64D28X-72 P64D21X-74 P64D28X-74 P64D21X-80 P64D28X-80 P64D21X-84 P64D28X-84 P64D21X-88 P64D28X-88 P64D21X-90 P64D28X-90 P64D21X-96 P64D28X-96 P64D21X-100 P64D28X-100 P64D21X-112 P64D28X-112 P64D21X-120 P64D28X-120 P64D21X-127 P64D28X-127 P64D21X-128 P64D28X-128 P64D21X-144 P64D28X-144 P64D21X-152 P64D28X-152 P64D21X-160 P64D28X-160 P64D21X-168 P64D28X-168 P64D21X-176 P64D28X-176 P64D21X-184 P64D28X-184 P64D21X-192 P64D28X-192 P64D21X-224 P64D28X-224 |
PIC Design
AB23-36 AB24-36 AB23-37 AB24-37 AB23-38 AB24-38 AB23-40 AB24-40 AB23-42 AB24-42 AB23-44 AB24-44 AB23-46 AB24-46 AB23-48 AB24-48 AB23-50 AB24-50 AB23-56 AB24-56 AB23-60 AB24-60 AB23-64 AB24-64 AB23-72 AB24-72 AB23-74 AB24-74 AB23-80 AB24-80 AB23-84 AB24-84 AB23-88 AB24-88 AB23-90 AB24-90 AB23-96 AB24-96 AB23-100 AB24-100 AB23-112 AB24-112 AB23-120 AB24-120 AB23-127 AB24-127 AB23-128 AB24-128 AB23-144 AB24-144 |
Omnicomponents
64D07P36 64D09P36 64D07P37 64D09P37 64D07P38 64D09P38 64D07P40 64D09P40 64D07P42 64D09P42 64D07P44 64D09P44 64D07P46 64D09P46 64D07P48 64D09P48 64D07P50 64D09P50 64D07P56 64D09P56 64D07P60 64D09P60 64D07P64 64D09P64 64D07P72 64D09P72 64D07P74 64D09P74 64D07P80 64D09P80 64D07P84 64D09P84 64D07P88 64D09P88 64D07P90 64D09P90 64D07P96 64D09P96 64D07P100 64D09P100 64D07P112 64D09P112 64D07P120 64D09P120 64D07P127 64D09P127 64D07P128 64D09P128 64D07P144 64D09P144 64D07P152 64D09P152 64D07P160 64D09P160 64D07P168 64D09P168 64D07P176 64D09P176 64D07P184 64D09P184 64D07P192 64D09P192 64D07P224 64D09P224 |
Bore Size
.1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" .1873" .2498" |
