Precision Pinion Shafts

Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote

Allied Devices/WM Berg/McMaster Carr/PIC Design/Omnicomponents
Part Number Cross-Reference

Alternate materials and dimensions available upon request

---

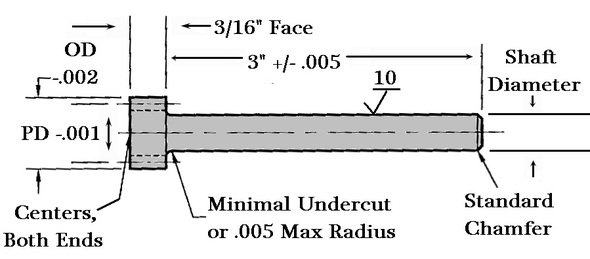

Precision Pinion Shafts



AGMA Quality 10

20° Pressure Angle

Material:
303 Stainless Steel

---

Allied Devices

DF41

DF42

DF43

DF44

DF45

DF51

DF52

DF53

DF54

DF55

DF56

DF57

DF61

DF62

DF63

DF64

DF65

DF66

DF67



DF68

DF69

DF610

DF611

DF612

PIC Design

F4-1

F4-2

F4-3

F4-4



F5-1

F5-2



F5-4

F5-5

F5-6



F6-1

F6-2

F6-3

F6-4

F6-5

F6-6

F6-7



F6-8

F6-9

WM Berg

PS96S2-10

PS120S2-12







PS72S3-10

PS96S3-10



PS96S3-12

PS96S3-14





PS48S4-10

PS64S4-12

PS64S4-14

PS72S4-14



PS96S4-16

PS96S4-18

PS96S4-20

PS80S4-10

PS80S4-12

Omnicomponents

PS96A10

PS120A12

PS200A18

PS200A20

PS200A22

PS72B10

PS96B10

PS96B11

PS96B12

PS96B14

PS80B10

PS80B12

PS48C10

PS64C12

PS64C14

PS72C14

PS72C16

PS96C16

PS96C18

PS96C20

PS80C10

PS80C12

PS80C14

PS80C16

PS80C18

Shaft Diameter

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

Pitch

96

120

200

200

200

72

96

96

96

96

80

80

48

64

64

72

72

96

96

96

80

80

80

80

80

Teeth

10

12

18

20

22

10

10

11

12

14

10

12

10

12

14

14

16

16

18

20

10

12

14

16

18

OD

.125

.116

.100

.110

.120

.166

.125

.135

.146

.166

.150

.175

.250

.219

.250

.222

.250

.187

.208

.229

.150

.175

.200

.225

.250

PD

.1042

.1000

.0900

.1000

.1100

.1388

.1042

.1145

.1250

.1458

.1250

.1500

.2083

.1875

.2187

.1944

.2222

.1666

.1875

.2083

.1250

.1500

.1750

.2000

.2250

---

Precision Pinion Shafts

AGMA Quality 10

20° Pressure Angle

Material:
303 Stainless Steel

---

Allied Devices

DF71

DF72

DF73

DF74

DF75

DF76

DF77

DF81

DF82

DF83

DF84

DF85

DF86

DF87



DF91





DF92

DF93





DF94







DF95



DF96



DF97

PIC Design

F7-1









F7-6



F8-1

F8-2

F8-3



F8-5



F8-7



F9-1





F9-2

F9-3





F9-4







F9-5



F9-6



F9-7

F9-8

WM Berg

PS64S2-16H

PS64S2-20H



PS72S2-24H



PS96S3-20H



PS48S3-12H



PS64S3-16H

PS64S3-12H

PS72S3-18H

PS72S3-24H

PS80S3-20H

PS24S4-10H

PS24S4-12H

PS32S4-12H

PS32S4-14H

PS32S4-16H

PS48S4-12H

PS48S4-14H

PS48S4-16H

PS48S4-18H

PS48S4-20H

PS48S4-24H

PS62S4-20H

PS64S4-16H

PS64S4-18H

PS64S4-20H

PS64S4-22H

PS64S4-24H

PS31S4-10H

Omnicomponents

CPS64A16

CPS64A20

CPS72A18

CPS72A24

CPS80A20

CPS96A24

CPS96A32

CPS48B12

CPS48B18

CPS64B16

CPS64B20

CPS72B18

CPS72B24

CPS80B20

CPS24C10

CPS24C12

CPS32C12

CPS32C14

CPS32C16

CPS48C12

CPS48C14

CPS48C16

CPS48C18

CPS48C20

CPS48C24

CPS1/20C20

CPS64C16

CPS64C18

CPS64C20

CPS64C22

CPS64C24

CPS1/10C10

Shaft Dia.

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

1/8" (.1247)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

3/16" (.1872)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

1/4" (.2497)

Pitch

64

64

72

72

80

96

96

48

48

64

64

72

72

80

24

24

32

32

32

48

48

48

48

48

48

1/20

64

64

64

64

64

1/10

Teeth

16

20

18

24

20

24

32

12

18

16

20

18

24

20

10

12

12

14

16

12

14

16

18

20

24

20

16

18

20

22

24

10

OD

.281

.343

.278

.361

.275

.271

.354

.291

.416

.281

.343

.278

.361

.275

.500

.583

.438

.500

.562

.291

.333

.375

.416

.458

.542

.349

.281

.313

.343

.375

.406

.382

PD

.2500

.3125

.2500

.3333

.2500

.2500

.3333

.2500

.3750

.2500

.3125

.2500

.3333

.2500

.4166

.5000

.3750

.4375

.5000

.2500

.2917

.3333

.3750

.4166

.5000

.3183

.2500

.2812

.3125

.3437

.3750

.3183
