48 Pitch Anti-Backlash Gears
|
|

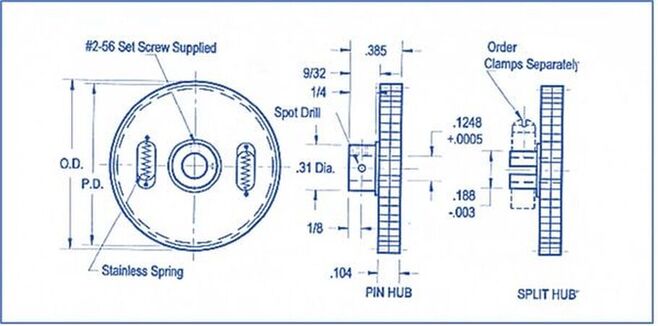

48 Pitch Anti-Backlash Gear 1/8" Bore, .104" Face
48 Pitch Anti-Backlash Gear: Compact Hub
1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP151T65 DP121T65 DP151T66 DP121T66 DP151T68 DP121T68 DP151T70 DP121T70 DP151T72 DP121T72 DP151T74 DP121T74 DP151T75 DP121T75 DP151T80 DP121T80 DP151T84 DP121T84 DP151T85 DP121T85 DP151T90 DP121T90 DP151T95 DP121T95 DP151T96 DP121T96 DP151T100 DP121T100 DP151T105 DP121T105 DP151T110 DP121T110 DP151T115 DP121T115 DP151T120 DP121T120 DP151T125 DP121T125 DP151T130 DP121T130 DP151T132 DP121T132 DP151T144 DP121T144 |
PIC Design
P15-1-65 P12-1-65 P15-1-70 P12-1-70 P15-1-72 P12-1-72 P15-1-75 P12-1-75 P15-1-80 P12-1-80 P15-1-84 P12-1-84 P15-1-85 P12-1-85 P15-1-90 P12-1-90 P15-1-95 P12-1-95 P15-1-96 P12-1-96 P15-1-100 P12-1-100 P15-1-105 P12-1-105 P15-1-110 P12-1-110 P15-1-115 P12-1-115 P15-1-120 P12-1-120 P15-1-125 P12-1-125 P15-1-130 P12-1-130 P15-1-132 P12-1-132 |
WM Berg
AP48S-65 AP48T-65 AP48S-70 AP48T-70 AP48S-72 AP48T-72 AP48S-75 AP48T-75 AP48S-80 AP48T-80 AP48S-84 AP48T-84 AP48S-85 AP48T-85 AP48S-90 AP48T-90 AP48S-95 AP48T-95 AP48S-96 AP48T-96 AP48S-100 AP48T-100 AP48S-105 AP48T-105 AP48S-110 AP48T-110 AP48S-115 AP48T-115 AP48S-120 AP48T-120 AP48S-125 AP48T-125 AP48S-130 AP48T-130 AP48S-132 AP48T-132 AP48S-140 AP48T-140 AP48S-144 AP48T-144 AP48S-150 AP48T-150 |
Omnicomponents
48AB1S65 48AB1A65 48AB1S66 48AB1A66 48AB1S68 48AB1A68 48AB1S70 48AB1A70 48AB1S72 48AB1A72 48AB1S74 48AB1A74 48AB1S75 48AB1A75 48AB1S80 48AB1A80 48AB1S84 48AB1A84 48AB1S85 48AB1A85 48AB1S90 48AB1A90 48AB1S95 48AB1A95 48AB1S96 48AB1A96 48AB1S100 48AB1A100 48AB1S105 48AB1A105 48AB1S110 48AB1A110 48AB1S115 48AB1A115 48AB1S120 48AB1A120 48AB1S125 48AB1A125 48AB1S130 48AB1A130 48AB1S132 48AB1A132 48AB1S140 48AB1A140 48AB1S144 48AB1A144 48AB1S150 48AB1A150 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
48 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
48 Pitch Anti-Backlash Gear: Compact Hub
3/16" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP161T65 DP131T65 DP161T66 DP131T66 DP161T68 DP131T68 DP161T70 DP131T70 DP161T72 DP131T72 DP161T74 DP131T74 DP161T75 DP131T75 DP161T80 DP131T80 DP161T84 DP131T84 DP161T85 DP131T85 DP161T90 DP131T90 DP161T95 DP131T95 DP161T96 DP131T96 DP161T100 DP131T100 DP161T105 DP131T105 DP161T110 DP131T110 DP161T115 DP131T115 DP161T120 DP131T120 DP161T125 DP131T125 DP161T130 DP131T130 DP161T132 DP131T132 DP161T144 DP131T144 |
PIC Design
P16-1-65 P13-1-65 P16-1-70 P13-1-70 P16-1-72 P13-1-72 P16-1-75 P13-1-75 P16-1-80 P13-1-80 P16-1-84 P13-1-84 P16-1-85 P13-1-85 P16-1-90 P13-1-90 P16-1-95 P13-1-95 P16-1-96 P13-1-96 P16-1-100 P13-1-100 P16-1-105 P13-1-105 P16-1-110 P13-1-110 P16-1-115 P13-1-115 P16-1-120 P13-1-120 P16-1-125 P13-1-125 P16-1-130 P13-1-130 P16-1-132 P13-1-132 |
WM Berg
AP48U-65 AP48V-65 AP48U-70 AP48V-70 AP48U-72 AP48V-72 AP48U-75 AP48V-75 AP48U-80 AP48V-80 AP48U-84 AP48V-84 AP48U-85 AP48V-85 AP48U-90 AP48V-90 AP48U-95 AP48V-95 AP48U-96 AP48V-96 AP48U-100 AP48V-100 AP48U-105 AP48V-105 AP48U-110 AP48V-110 AP48U-115 AP48V-115 AP48U-120 AP48V-120 AP48U-125 AP48V-125 AP48U-130 AP48V-130 AP48U-132 AP48V-132 AP48U-140 AP48V-140 AP48U-144 AP48V-144 AP48U-150 AP48V-150 |
Omnicomponents
48AB2S65 48AB2A65 48AB2S66 48AB2A66 48AB2S68 48AB2A68 48AB2S70 48AB2A70 48AB2S72 48AB2A72 48AB2S74 48AB2A74 48AB2S75 48AB2A75 48AB2S80 48AB2A80 48AB2S84 48AB2A84 48AB2S85 48AB2A85 48AB2S90 48AB2A90 48AB2S95 48AB2A95 48AB2S96 48AB2A96 48AB2S100 48AB2A100 48AB2S105 48AB2A105 48AB2S110 48AB2A110 48AB2S115 48AB2A115 48AB2S120 48AB2A120 48AB2S125 48AB2A125 48AB2S130 48AB2A130 48AB2S132 48AB2A132 48AB2S140 48AB2A140 48AB2S144 48AB2A144 48AB2S150 48AB2A150 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
48 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
48 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
|
Allied Devices
DP171T65 DP141T65 DP171T66 DP141T66 DP171T68 DP141T68 DP171T70 DP141T70 DP171T72 DP141T72 DP171T74 DP141T74 DP171T75 DP141T75 DP171T80 DP141T80 DP171T84 DP141T84 DP171T85 DP141T85 DP171T90 DP141T90 DP171T95 DP141T95 DP171T96 DP141T96 DP171T100 DP141T100 DP171T105 DP141T105 DP171T110 DP141T110 DP171T115 DP141T115 DP171T120 DP141T120 DP171T125 DP141T125 DP171T130 DP141T130 DP171T132 DP141T132 DP171T144 DP141T144 |
PIC Design
P17-1-65 P14-1-65 P17-1-70 P14-1-70 P17-1-72 P14-1-72 P17-1-75 P14-1-75 P17-1-80 P14-1-80 P17-1-84 P14-1-84 P17-1-85 P14-1-85 P17-1-90 P14-1-90 P17-1-95 P14-1-95 P17-1-96 P14-1-96 P17-1-100 P14-1-100 P17-1-105 P14-1-105 P17-1-110 P14-1-110 P17-1-115 P14-1-115 P17-1-120 P14-1-120 P17-1-125 P14-1-125 P17-1-130 P14-1-130 P17-1-132 P14-1-132 |
WM Berg
AP48W-65 AP48X-65 AP48W-70 AP48X-70 AP48W-72 AP48X-72 AP48W-75 AP48X-75 AP48W-80 AP48X-80 AP48W-84 AP48X-84 AP48W-85 AP48X-85 AP48W-90 AP48X-90 AP48W-95 AP48X-95 AP48W-96 AP48X-96 AP48W-100 AP48X-100 AP48W-105 AP48X-105 AP48W-110 AP48X-110 AP48W-115 AP48X-115 AP48W-120 AP48X-120 AP48W-125 AP48X-125 AP48W-130 AP48X-130 AP48W-132 AP48X-132 AP48W-140 AP48X-140 AP48W-144 AP48X-144 AP48W-150 AP48X-150 |
Omnicomponents
48AB3S65 48AB3A65 48AB3S66 48AB3A66 48AB3S68 48AB3A68 48AB3S70 48AB3A70 48AB3S72 48AB3A72 48AB3S74 48AB3A74 48AB3S75 48AB3A75 48AB3S80 48AB3A80 48AB3S84 48AB3A84 48AB3S85 48AB3A85 48AB3S90 48AB3A90 48AB3S95 48AB3A95 48AB3S96 48AB3A96 48AB3S100 48AB3A100 48AB3S105 48AB3A105 48AB3S110 48AB3A110 48AB3S115 48AB3A115 48AB3S120 48AB3A120 48AB3S125 48AB3A125 48AB3S130 48AB3A130 48AB3S132 48AB3A132 48AB3S140 48AB3A140 48AB3S144 48AB3A144 48AB3S150 48AB3A150 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
