120 Pitch Anti-Backlash Gears
|
|
120 Pitch Anti-Backlash Gear 1/8" Bore, .104" Face
120 Pitch Anti-Backlash Gear: Compact Hub

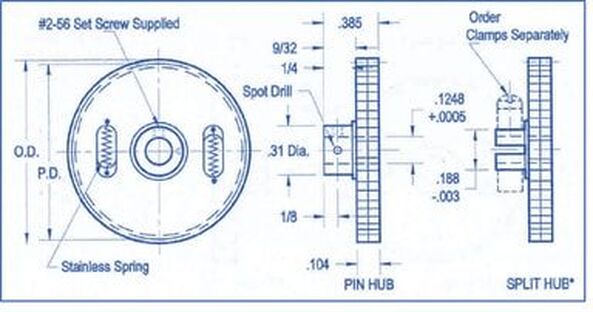

1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP159T160 DP129T160 DP159T165 DP129T165 DP159T170 DP129T170 DP159T175 DP129T175 DP159T180 DP129T180 DP159T185 DP129T185 DP159T190 DP129T190 DP159T195 DP129T195 DP159T200 DP129T200 DP159T210 DP129T210 DP159T220 DP129T220 DP159T230 DP129T230 DP159T240 DP129T240 DP159T250 DP129T250 DP159T260 DP129T260 DP159T270 DP129T270 DP159T280 DP129T280 DP159T290 DP129T290 DP159T300 DP129T300 DP159T310 DP129T310 DP159T320 DP129T320 DP159T360 DP159T360 |
Omnicomponents
120AB1S160 120AB1A160 120AB1S165 120AB1A165 120AB1S170 120AB1A170 120AB1S175 120AB1A175 120AB1S180 120AB1A180 120AB1S185 120AB1A185 120AB1S190 120AB1A190 120AB1S195 120AB1A195 120AB1S200 120AB1A200 120AB1S210 120AB1A210 120AB1S220 120AB1A220 120AB1S230 120AB1A230 120AB1S240 120AB1A240 120AB1S250 120AB1A250 120AB1S260 120AB1A260 120AB1S270 120AB1A270 120AB1S280 120AB1A280 120AB1S290 120AB1A290 120AB1S300 120AB1A300 120AB1S310 120AB1A310 120AB1S320 120AB1A320 120AB1S360 120AB1A360 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
120 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
120 Pitch Anti-Backlash Gear: Compact Hub

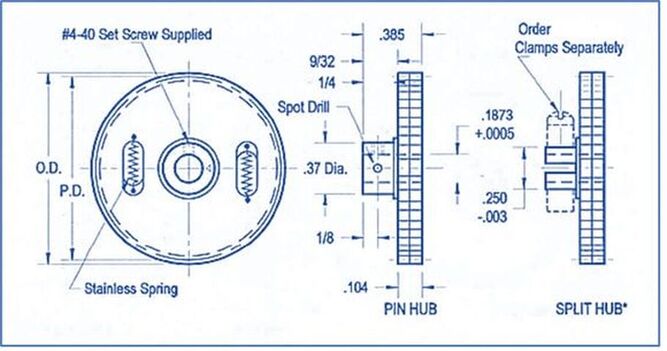

3/16" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP169T160 DP139T160 DP169T165 DP139T165 DP169T170 DP139T170 DP169T175 DP139T175 DP169T180 DP139T180 DP169T185 DP139T185 DP169T190 DP139T190 DP169T195 DP139T195 DP169T200 DP139T200 DP169T210 DP139T210 DP169T220 DP139T220 DP169T230 DP139T230 DP169T240 DP139T240 DP169T250 DP139T250 DP169T260 DP139T260 DP169T270 DP139T270 DP169T280 DP139T280 DP169T290 DP139T290 DP169T300 DP139T300 DP169T310 DP139T310 DP169T320 DP139T320 DP169T360 DP139T360 |
Omnicomponents
120AB2S160 120AB2A160 120AB2S165 120AB2A165 120AB2S170 120AB2A170 120AB2S175 120AB2A175 120AB2S180 120AB2A180 120AB2S185 120AB2A185 120AB2S190 120AB2A190 120AB2S195 120AB2A195 120AB2S200 120AB2A200 120AB2S210 120AB2A210 120AB2S220 120AB2A220 120AB2S230 120AB2A230 120AB2S240 120AB2A240 120AB2S250 120AB2A250 120AB2S260 120AB2A260 120AB2S270 120AB2A270 120AB2S280 120AB2A280 120AB2S290 120AB2A290 120AB2S300 120AB2A300 120AB2S310 120AB2A310 120AB2S320 120AB2A320 120AB2S360 120AB2A360 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
120 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
120 Pitch Anti-Backlash Gear: Compact Hub

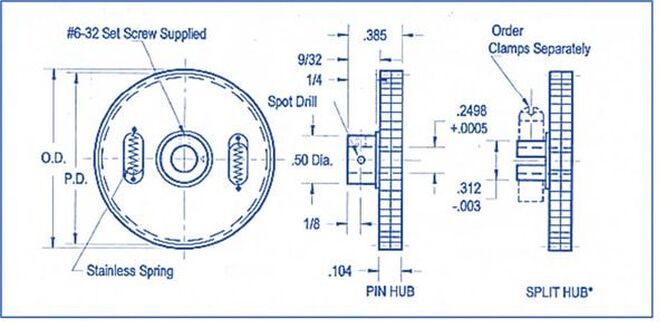

1/4" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
|
Allied Devices
DP179T160 DP149T160 DP179T165 DP149T165 DP179T170 DP149T170 DP179T175 DP149T175 DP179T180 DP149T180 DP179T185 DP149T185 DP179T190 DP149T190 DP179T195 DP149T195 DP179T200 DP149T200 DP179T210 DP149T210 DP179T220 DP149T220 DP179T230 DP149T230 DP179T240 DP149T240 DP179T250 DP149T250 DP179T260 DP149T260 DP179T270 DP149T270 DP179T280 DP149T280 DP179T290 DP149T290 DP179T300 DP149T300 DP179T310 DP149T310 DP179T320 DP149T320 DP179T360 DP149T360 |
Omnicomponents
120AB3S160 120AB3A160 120AB3S165 120AB3A165 120AB3S170 120AB3A170 120AB3S175 120AB3A175 120AB3S180 120AB3A180 120AB3S185 120AB3A185 120AB3S190 120AB3A190 120AB3S195 120AB3A195 120AB3S200 120AB3A200 120AB3S210 120AB3A210 120AB3S220 120AB3A220 120AB3S230 120AB3A230 120AB3S240 120AB3A240 120AB3S250 120AB3A250 120AB3S260 120AB3A260 120AB3S270 120AB3A270 120AB3S280 120AB3A280 120AB3S290 120AB3A290 120AB3S300 120AB3A300 120AB3S310 120AB3A310 120AB3S320 120AB3A320 120AB3S360 120AB3A360 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
