Metric Precision Hex Socket Head Shoulder Screws

Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote

Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference

Alternate materials and dimensions available upon request

---

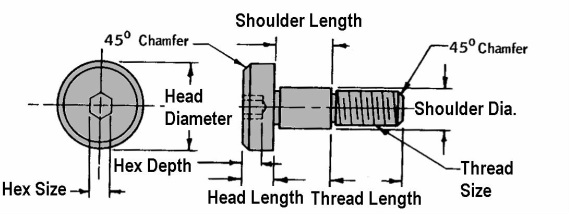

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 2mm
Hex Socket Depth: 1.6mm

Head Diameter: 6mm
Head Length: 3mm

Thread: M3 X 0.5
Thread Length: 4mm

Shoulder Diameter: 4mm (3.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D44

M46D44

M44D45

M46D45

M44D46

M46D46

M44D48

M46D48

M44D410

M46D410

WM Berg

PZM-1-3

PZM-1

PZM-2-3

PZM-2

PZM-3-3

PZM-3

PZM-4-3

PZM-4

PZM-5-3

PZM-5

PIC Design

MSB2-1

MSB4-1

MSB2-2

MSB4-2

MSB2-3

MSB4-3

MSB2-4

MSB4-4

MSB2-5

MSB4-5

Omnicomponents

MHS301

MHS401

MHS302

MHS402

MHS303

MHS403

MHS304

MHS404

MHS305

MHS405

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

4mm (4.013)

4mm (4.013)

5mm (5.013)

5mm (5.013)

6mm (6.013)

6mm (6.013)

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 2.5mm
Hex Socket Depth: 2mm

Head Diameter: 8mm
Head Length: 4mm

Thread: M4 X 0.7
Thread Length: 5mm

Shoulder Diameter: 5mm (4.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D54

M46D54

M44D55

M46D55

M44D56

M46D56

M44D58

M46D58

M44D510

M46D510

M44D512

M46D512

M44D514

M46D514

M44D516

M46D516

M44D520

M46D520

M44D525

M46D525

M44D530

M46D530

WM Berg

PZM-6-3

PZM-6

PZM-7-3

PZM-7

PZM-8-3

PZM-8

PZM-9-3

PZM-9

PZM-10-3

PZM-10

PZM-11-3

PZM-11

PZM-12-3

PZM-12

PZM-13-3

PZM-13

PZM-14-3

PZM-14

PZM-15-3

PZM-15

PZM-16-3

PZM-16

PIC Design

MSB2-6

MSB4-6

MSB2-7

MSB4-7

MSB2-8

MSB4-8

MSB2-9

MSB4-9

MSB2-10

MSB4-10

MSB2-11

MSB4-11

MSB2-12

MSB4-12

MSB2-13

MSB4-13

MSB2-14

MSB4-14

MSB2-15

MSB4-15

MSB2-16

MSB4-16

Omnicomponents

MHS306

MHS406

MHS307

MHS407

MHS308

MHS408

MHS309

MHS409

MHS310

MHS410

MHS311

MHS411

MHS312

MHS412

MHS313

MHS413

MHS314

MHS414

MHS315

MHS415

MHS316

MHS416

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

4mm (4.013)

4mm (4.013)

5mm (5.013)

5mm (5.013)

6mm (6.013)

6mm (6.013)

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

12mm (12.013)

12mm (12.013)

14mm (14.013)

14mm (14.013)

16mm (16.013)

16mm (16.013)

20mm (20.013)

20mm (20.013)

25mm (25.013)

25mm (25.013)

30mm (30.013)

30mm (30.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 3mm
Hex Socket Depth: 2.4mm

Head Diameter: 10mm
Head Length: 5mm

Thread: M5 X 0.8
Thread Length: 6mm

Shoulder Diameter: 6mm (5.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D64

M46D64

M44D65

M46D65

M44D66

M46D66

M44D68

M46D68

M44D610

M46D610

M44D612

M46D612

M44D614

M46D614

M44D616

M46D616

M44D620

M46D620

M44D625

M46D625

M44D630

M46D630

WM Berg

PZM-17-3

PZM-17

PZM-18-3

PZM-18

PZM-19-3

PZM-19

PZM-20-3

PZM-20

PZM-21-3

PZM-21

PZM-22-3

PZM-22

PZM-23-3

PZM-23

PZM-24-3

PZM-24

PZM-25-3

PZM-25

PZM-26-3

PZM-26

PZM-27-3

PZM-27

PIC Design

MSB2-17

MSB4-17

MSB2-18

MSB4-18

MSB2-19

MSB4-19

MSB2-20

MSB4-20

MSB2-21

MSB4-21

MSB2-22

MSB4-22

MSB2-23

MSB4-23

MSB2-24

MSB4-24

MSB2-25

MSB4-25

MSB2-26

MSB4-26

MSB2-27

MSB4-27

Omnicomponents

MHS317

MHS417

MHS318

MHS418

MHS319

MHS419

MHS320

MHS420

MHS321

MHS421

MHS322

MHS422

MHS323

MHS423

MHS324

MHS424

MHS325

MHS425

MHS326

MHS426

MHS327

MHS427

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

4mm (4.013)

4mm (4.013)

5mm (5.013)

5mm (5.013)

6mm (6.013)

6mm (6.013)

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

12mm (12.013)

12mm (12.013)

14mm (14.013)

14mm (14.013)

16mm (16.013)

16mm (16.013)

20mm (20.013)

20mm (20.013)

25mm (25.013)

25mm (25.013)

30mm (30.013)

30mm (30.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 4mm
Hex Socket Depth: 3.2mm

Head Diameter: 12mm
Head Length: 6mm

Thread: M6 X 1
Thread Length: 11mm

Shoulder Diameter: 8mm (7.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D86

M46D86

M44D88

M46D88

M44D810

M46D810

M44D812

M46D812

M44D816

M46D816

M44D820

M46D820

WM Berg

PZM-28-3

PZM-28

PZM-29-3

PZM-29

PZM-30-3

PZM-30

PZM-31-3

PZM-31

PZM-32-3

PZM-32

PZM-33-3

PZM-33

PIC Design

MSB2-28

MSB4-28

MSB2-29

MSB4-29

MSB2-30

MSB4-30

MSB2-31

MSB4-31

MSB2-32

MSB4-32

MSB2-33

MSB4-33

Omnicomponents

MHS328

MHS428

MHS329

MHS429

MHS330

MHS430

MHS331

MHS431

MHS332

MHS432

MHS333

MHS433

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

6mm (6.013)

6mm (6.013)

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

12mm (12.013)

12mm (12.013)

16mm (16.013)

16mm (16.013)

20mm (20.013)

20mm (20.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 4mm
Hex Socket Depth: 3.2mm

Head Diameter: 12mm
Head Length: 6mm

Thread: M6 X 1
Thread Length:  11mm

Shoulder Diameter: 10mm (9.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D108

M46D108

M44D1010

M46D1010

M44D1012

M46D1012

M44D1016

M46D1016

WM Berg

PZM-34-3

PZM-34

PZM-35-3

PZM-35

PZM-36-3

PZM-36

PZM-37-3

PZM-37

PIC Design

MSB2-34

MSB4-34

MSB2-35

MSB4-35

MSB2-36

MSB4-36

MSB2-37

MSB4-37

Omnicomponents

MHS334

MHS434

MHS335

MHS435

MHS336

MHS436

MHS337

MHS437

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

12mm (12.013)

12mm (12.013)

16mm (16.013)

16mm (16.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 5mm
Hex Socket Depth: 4mm

Head Diameter: 14mm
Head Length: 7mm

Thread: M8 X 1.25
Thread Length: 12mm

Shoulder Diameter: 10mm (9.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices

M44D128

M46D128

M44D1210

M46D1210

M44D1212

M46D1212

M44D1216

M46D1216

WM Berg

PZM-38-3

PZM-38

PZM-39-3

PZM-39

PZM-40-3

PZM-40

PZM-41-3

PZM-41

PIC Design

MSB2-38

MSB4-38

MSB2-39

MSB4-39

MSB2-40

MSB4-40

MSB2-41

MSB4-41

Omnicomponents

MHS338

MHS438

MHS339

MHS439

MHS340

MHS440

MHS341

MHS431

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

8mm (8.013)

8mm (8.013)

10mm (10.013)

10mm (10.013)

12mm (12.013)

12mm (12.013)

16mm (16.013)

16mm (16.013)

Metric Precision Hex Socket Head Shoulder Screws

Hex Socket Size: 6mm
Hex Socket Depth: 4.8mm

Head Diameter: 20mm
Head Length: 8mm

Thread: M10 X 1.5
Thread Length: 16mm

Shoulder Diameter: 12mm (11.987)

Made in the USA

Contact vic@omnicomponentscorp.com

---

Allied Devices









M44D1220

M46D1220

M44D1225

M46D1225

WM Berg

PZM-42-3

PZM-42

PZM-43-3

PZM-43

PZM-44-3

PZM-44

PZM-45-3

PZM-45

PIC Design

MSB2-42

MSB4-42

MSB2-43

MSB4-43

MSB2-44

MSB4-44

MSB2-45

MSB4-45

Omnicomponents

MHS342

MHS442

MHS343

MHS443

MHS344

MHS444

MHS345

MHS445

Material

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

303SS (DIN 1.4305)

416SS (DIN 1.4005)

Shoulder Length

12mm (12.013)

12mm (12.013)

16mm (16.013)

16mm (16.013)

20mm (20.013)

20mm (20.013)

25mm (25.013)

25mm (25.013)
