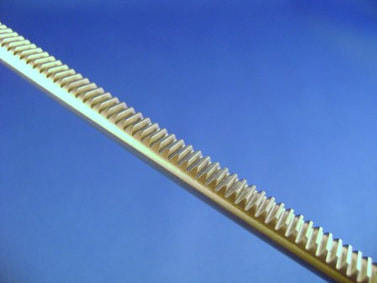

Precision Gear Racks
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions
available upon request
or Reference Any Manufacturers' Part Number In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions
available upon request
Classifications & Tolerances
|
|
Fine Pitch Gear Racks - Rectangular
Material: 416SS
Stress Relieved
20˚ Pressure Angle
|
M (Drill Hole Height, Center)
16-20 Pitch: .312 24-64 Pitch: .218 72-96 Pitch: .156 |
MH (Drill Hole Size)
16-20 Pitch: 17/64 24-64 Pitch: #26 72-96 Pitch: #31 |
D (Tap Hole Size)
16-20 Pitch: #10-24 x 3/8 24-64 Pitch: #6-32 x 1/4 72-96 Pitch: #4-40 x 3/16 |
Precision 1 Tolerance Fine Pitch Gear Racks - Rectangular
.725 Height, .365 Face
|
Allied Devices
DAGR111 DAGR121 |
WM Berg
R1-1-G1 R1-2-G1 |
Omnicomponents
RCTR01P1 RCTR02P1 |
Pitch
16 20 |
Length
11.185 11.147 |
PD
.6625 .6750 |
Linear Pitch
.1963 .1570 |
.475 Height, .230 Face
|
WM Berg
R1-3-G1 R1-4-G1 R1-5-G1 R1-6-G1 R1-7-G1 R1-8-G1 |
Omnicomponents
RCTR03P1 RCTR04P1 RCTR05P1 RCTR06P1 RCTR07P1 RCTR08P1 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
P.D.
.4333 .4432 .4437 .4542 .4592 .4594 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.480 Height, .230 Face
|
Allied Devices
DAG311 DAG321 DAG331 DAG341 DAGR171 DAG351 |
PIC Design
AG-31-P1 AG-32-P1 AG-33-P1 AG-34-P1 AG-35-P1 |
WM Berg
R3-1-G1 R3-2-G1 R3-3-G1 R3-4-G1 R3-5-G1 |
Omnicomponents
RCTR31P1 RCTR32P1 RCTR33P1 RCTR34P1 RCTR17P1 RCTR35P1 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
PD
.4383 .4482 .4487 .4592 .4591 .4644 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.350 Height, .167 Face
|
WM Berg
R1-9-G1 R1-10-G1 R1-11-G1 |
Omnicomponents
RCTR09P1 RCTR10P1 RCTR11P1 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3361 .3375 .3396 |
Linear Pitch
.0436 .0393 .0327 |
.355 Height, .167 Face
|
Allied Devices
DAG361 DAG371 DAG381 |
PIC Design
AG-36-P1 AG-38-P1 |
WM Berg
R3-6-G1 R3-8-G1 |
Omnicomponents
RCTR36P1 RCTR37P1 RCTR38P1 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3411 .3425 .3446 |
Linear Pitch
.0436 .0393 .0327 |
Precision 2 Tolerance Fine Pitch Gear Racks - Rectangular
.725 Height, .365 Face
|
Allied Devices
DAGR112 DAGR122 |
WM Berg
R1-1-G2 R1-2-G2 |
Omnicomponents
RCTR01P2 RCTR02P2 |
Pitch
16 20 |
Length
11.185 11.147 |
PD
.6625 .6750 |
Linear Pitch
.1963 .1570 |
.475 Height, .230 Face
|
WM Berg
R1-3-G2 R1-4-G2 R1-5-G2 R1-6-G2 R1-7-G2 R1-8-G2 |
Omnicomponents
RCTR03P2 RCTR04P2 RCTR05P2 RCTR06P2 RCTR07P2 RCTR08P2 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
P.D.
.4333 .4432 .4437 .4542 .4592 .4594 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.480 Height, .230 Face
|
Allied Devices
DAG312 DAG322 DAG332 DAG342 DAGR172 DAG352 |
PIC Design
AG-31-P2 AG-32-P2 AG-33-P2 AG-34-P2 AG-35-P2 |
WM Berg
R3-1-G2 R3-2-G2 R3-3-G2 R3-4-G2 R3-5-G2 |
Omnicomponents
RCTR31P2 RCTR32P2 RCTR33P2 RCTR34P2 RCTR17P2 RCTR35P2 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
PD
.4383 .4482 .4487 .4592 .4591 .4644 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.350 Height, .167 Face
|
WM Berg
R1-9-G2 R1-10-G2 R1-11-G2 |
Omnicomponents
RCTR09P2 RCTR10P2 RCTR11P2 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3361 .3375 .3396 |
Linear Pitch
.0436 .0393 .0327 |
.355 Height, .167 Face
|
Allied Devices
DAG362 DAG372 DAG382 |
PIC Design
AG-36-P2 AG-38-P2 |
WM Berg
R3-6-G2 R3-8-G2 |
Omnicomponents
RCTR36P2 RCTR37P2 RCTR38P2 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3411 .3425 .3446 |
Linear Pitch
.0436 .0393 .0327 |
Precision 3 Tolerance Fine Pitch Gear Racks - Rectangular
.725 Height, .365 Face
|
Allied Devices
DAGR113 DAGR123 |
WM Berg
R1-1-G3 R1-2-G3 |
Omnicomponents
RCTR01P3 RCTR02P3 |
Pitch
16 20 |
Length
11.185 11.147 |
PD
.6625 .6750 |
Linear Pitch
.1963 .1570 |
.475 Height, .230 Face
|
WM Berg
R1-3-G3 R1-4-G3 R1-5-G3 R1-6-G3 R1-7-G3 R1-8-G3 |
Omnicomponents
RCTR03P3 RCTR04P3 RCTR05P3 RCTR06P3 RCTR07P3 RCTR08P3 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
P.D.
.4333 .4432 .4437 .4542 .4592 .4594 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.480 Height, .230 Face
|
Allied Devices
DAG313 DAG323 DAG333 DAG343 DAGR173 DAG353 |
PIC Design
AG-31-P3 AG-32-P3 AG-33-P3 AG-34-P3 AG-35-P3 |
WM Berg
R3-1-G3 R3-2-G3 R3-3-G3 R3-4-G3 R3-5-G3 |
Omnicomponents
RCTR31P2 RCTR32P2 RCTR33P2 RCTR34P2 RCTR17P2 RCTR35P2 |
Pitch
24 1/10 32 48 1/20 64 |
Length
11.120 10.994 11.087 11.055 10.994 11.038 |
PD
.4383 .4482 .4487 .4592 .4591 .4644 |
Linear Pitch
.1309 .1000 .0982 .0654 .0500 .0491 |
.350 Height, .167 Face
|
WM Berg
R1-9-G3 R1-10-G3 R1-11-G3 |
Omnicomponents
RCTR09P3 RCTR10P3 RCTR11P3 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3361 .3375 .3396 |
Linear Pitch
.0436 .0393 .0327 |
.355 Height, .167 Face
|
Allied Devices
DAG363 DAG373 DAG383 |
PIC Design
AG-36-P3 AG-38-P3 |
WM Berg
R3-6-G3 R3-8-G3 |
Omnicomponents
RCTR36P3 RCTR37P3 RCTR38P3 |
Pitch
72 80 96 |
Length
11.033 11.028 11.022 |
PD
.3411 .3425 .3446 |
Linear Pitch
.0436 .0393 .0327 |
|
|
Precision 1 Tolerance Fine Pitch Gear Racks - Rectangular
Drill Hole Size
16-20 Pitch: 17/64
24-64 Pitch: #26
72-96 Pitch: #31
Drill Hole Height (Center)
16-20 Pitch: .312
24-64 Pitch: .218
72-96 Pitch: .156
Tap Hole Size
16-20 Pitch: #10-24 x 3/8
24-64 Pitch: #6-32 x 1/4
72-96 Pitch: #4-40 x 3/16
20 Degree Pressure Angle
16-20 Pitch: 17/64
24-64 Pitch: #26
72-96 Pitch: #31
Drill Hole Height (Center)
16-20 Pitch: .312
24-64 Pitch: .218
72-96 Pitch: .156
Tap Hole Size
16-20 Pitch: #10-24 x 3/8
24-64 Pitch: #6-32 x 1/4
72-96 Pitch: #4-40 x 3/16
20 Degree Pressure Angle
|
|
Precision 1 Tolerance Fine Pitch Gear Racks - Rectangular
20 Degree Pressure Angle
Stress Relieved
|
|
Precision 1 Tolerance Fine Pitch Gear Racks - Round
20 Degree Pressure Angle
Stress Relieved
|
|
