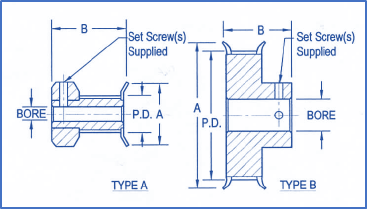

.0816 40 D.P. Timing Pulleys (XXL)
Material: Aluminum Anodized Belt Widths:
Pin Hub Double Flange Made in the USA |
.0816 40 D.P. Timing Pulleys (XXL)
|
|
Allied Devices
DFH1T10 DFH1T11 DFH1T12 DFH1T14 DFH1T15 DFH1T16 DFH1T18 DFH1T20 DFH1T21 DFH1T22 DFH1T24 DFH1T25 DFH1T26 DFH1T28 DFH1T30 DFH1T32 DFH1T36 DFH1T40 DFH1T42 DFH1T44 DFH1T48 DFH1T50 DFH1T60 |
PIC Design
PT010C04L02R PT011C04L02R PT012C04L02R PT014C04L02R PT015C06L02R PT016C06L02R PT018C06L02T PT020C06L02T PT021C06L02T PT022C06L02T PT024C08L02T PT028C08L02T PT030C08L02T PT032C08L02T PT036C08L02T PT040C08L02T PT042C08L02T PT044C08L02T PT048C08L02T PT060C08L02T |
Omnicomponents
140TP125A10 140TP125A11 140TP125A12 140TP125A14 140TP188A15 140TP188A16 140TP188B18 140TP188B20 140TP188B21 140TP188B22 140TP250B24 140TP250B25 140TP250B26 140TP250B28 140TP250B30 140TP250B32 140TP250B36 140TP250B40 140TP250B42 140TP250B44 140TP250B48 140TP250B48 140TP250B60 |
Grooves
10 11 12 14 15 16 18 20 21 22 24 28 30 32 36 40 42 44 48 50 60 |
Type
A A A A A A B B B B B B B B B B B B B B B |
PD
.260 .286 .312 .364 .390 .416 .468 .520 .546 .572 .624 .650 .676 .728 .780 .832 .936 1.040 1.092 1.144 1.248 1.300 1.560 |
OD
.246 .272 .298 .350 .376 .402 .454 .506 .532 .558 .610 .636 .663 .714 .766 .818 .922 1.026 1.078 1.130 1.234 1.286 1.546 |
Bore
.125 .125 .125 .125 .188 .188 .188 .188 .188 .188 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 |
A
.425 .450 .480 .530 .555 .580 .635 .685 .710 .740 .790 .815 .840 .895 .945 1.000 1.105 1.210 1.260 1.315 1.420 1.470 1.730 |
B
.500 .500 .500 .500 .500 .500 .563 .563 .563 .563 .625 .625 .625 .625 .625 .625 .625 .656 .656 .656 .656 .656 .656 |
|
.0816 40 D.P. Timing Pulleys (XXL)
Material: Aluminum Anodized Belt Widths:
Pin Hub Double Flange Made in the USA |
.0816 40 D.P. Timing Pulleys (XXL)
|
|
Allied Devices
DFH2T10 DFH2T11 DFH2T12 DFH2T14 DFH2T15 DFH2T16 DFH2T18 DFH2T20 DFH2T21 DFH2T22 DFH2T24 DFH2T25 DFH2T26 DFH2T28 DFH2T30 DFH2T32 DFH2T36 DFH2T40 DFH2T42 DFH2T44 DFH2T48 DFH2T50 DFH2T60 |
PIC Design
PT010C04L04R PT011C04L04R PT012C04L04R PT014C04L04R PT015C06L04R PT016C06L04R PT018C06L04T PT020C06L04T PT021C06L04T PT022C06L04T PT024C08L04T PT028C08L04T PT030C08L04T PT032C08L04T PT036C08L04T PT040C08L04T PT042C08L04T PT044C08L04T PT048C08L04T PT060C08L04T |
Omnicomponents
240TP125A10 240TP125A11 240TP125A12 240TP125A14 240TP188A15 240TP188A16 240TP188B18 240TP188B20 240TP188B21 240TP188B22 240TP250B24 240TP250B25 240TP250B26 240TP250B28 240TP250B30 240TP250B32 240TP250B36 240TP250B40 240TP250B42 240TP250B44 240TP250B48 240TP250B50 240TP250B60 |
Grooves
10 11 12 14 15 16 18 20 21 22 24 25 26 28 30 32 36 40 42 44 48 50 60 |
Type
A A A A A A B B B B B B B B B B B B B B B B B |
PD
.260 .288 .312 .364 .390 .416 .468 .520 .546 .572 .624 .650 .676 .728 .780 .832 .936 1.040 1.092 1.144 1.248 1.300 1.560 |
OD
.246 .272 .298 .350 .376 .402 .454 .506 .532 .558 .610 .636 .663 .714 .766 .818 .922 1.026 1.078 1.130 1.234 1.286 1.546 |
Bore
.125 .125 .125 .125 .188 .188 .188 .188 .188 .188 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 .250 |
A
.425 .450 .480 .530 .555 .580 .635 .685 .710 .740 .790 .815 .840 .895 .945 1.000 1.105 1.210 1.260 1.315 1.420 1.470 1.730 |
B
.625 .625 .625 .625 .625 .625 .688 .688 .688 .688 .750 .750 .750 .750 .750 .750 .750 .780 .780 .780 .780 .780 .780 |
