Anti-Backlash Gears
​
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number
In Your Request For Quote

Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference

Alternate materials and dimensions
​available upon request

24 Pitch Anti-Backlash Gear: Compact Hub
​1/4" Bore   3/16" Face   20˚ Pressure Angle
​AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP172T
​DP142T

PIC Design
P17-2-
​P14-2-

WM Berg
AP24M-
AP24Q-

Omnicomponents
24AB4S
24AB4A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP172T(# of teeth)-C
​DP142T(# of teeth)-C

PIC Design
P17-2-(# of teeth)-C
​P14-2-(# of teeth)-C

WM Berg
AC24M-
AC24Q-

Omnicomponents
24AB4S(# of teeth)-C
24AB4A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

​32 Pitch Anti-Backlash Gear: Compact Hub
​1/4" Bore   3/16" Face   20˚ Pressure Angle
​AGMA 10​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP174T
​DP144T

PIC Design
P17-4-
​P14-2-

WM Berg
AP32M-
AP32Q-

Omnicomponents
32AB4S
32AB4A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP174T(# of teeth)-C
​DP144T(# of teeth)-C

PIC Design
P17-4-(# of teeth)-C
​P14-4-(# of teeth)-C

WM Berg
AC32M-
AC32Q-

Omnicomponents
32AB4S(# of teeth)-C
32AB4A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

48 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP151T
​DP121T

PIC Design
P15-1-
​P12-1-

WM Berg
AP48S-
AP48T-

Omnicomponents
48AB1S
48AB1A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP151T(# of teeth)-C
​DP121T(# of teeth)-C

PIC Design
P15-1-(# of teeth)-C
​P12-1-(# of teeth)-C

WM Berg
AC48S-
AC48T-

Omnicomponents
48AB1S(# of teeth)-C
48AB1A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

48 Pitch Anti-Backlash Gear: Compact Hub

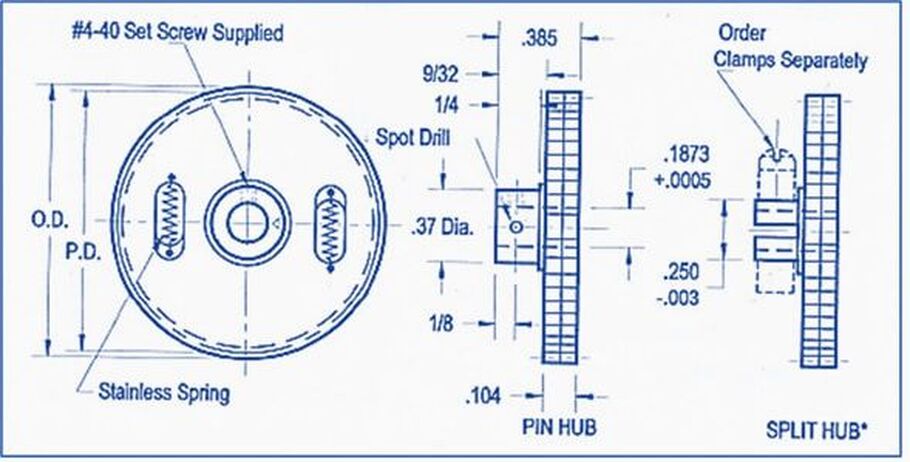

​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP161T
​DP131T

PIC Design
P16-1-
​P13-1-

WM Berg
AP48U-
AP48V-​

Omnicomponents
48AB2S
48AB2A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP161T(# of teeth)-C
​DP131T(# of teeth)-C

PIC Design
P16-1-(# of teeth)-C
​P16-1-(# of teeth)-C​

WM Berg
AC48U-
AC48V-​

Omnicomponents
48AB2S(# of teeth)-C
48AB2A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

48 Pitch Anti-Backlash Gear: Compact Hub
​1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP171T
​DP141T

PIC Design
P17-1-
​P14-1-

WM Berg
AP48W-
AP48X-​​

Omnicomponents
48AB3S
48AB3A​

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP171T(# of teeth)-C
​DP141T(# of teeth)-C

PIC Design
P17-1-(# of teeth)-C
​P14-1-(# of teeth)-C​​

WM Berg
AC48W-
AC48X-​​

Omnicomponents
48AB3S(# of teeth)-C
48AB3A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

64 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP153T
​DP123T

​PIC Design
P15-3-
​P12-3-

WM Berg
AP64S-
AP64T-

Omnicomponents
64AB1S
64AB1A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

​Split Hub

​Allied Devices
DP153T(# of teeth)-C
​DP123T(# of teeth)-C

PIC Design
P15-3-(# of teeth)-C
P12-3-​(# of teeth)-C

WM Berg
AC64S-
AC64T-

Omnicomponents
64AB1S​(# of teeth)-C
64AB1A​(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

64 Pitch Anti-Backlash Gear: Compact Hub
​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​Material Hubs: 303 Stainless Steel
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

​Pin Hub

Allied Devices
DP163T
​DP133T​

​PIC Design
P16-3-
​P13-3-

WM Berg
AP64U-
AP64V-

Omnicomponents
64AB2S
64AB2A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Splt Hub

Allied Devices
DP163T(# of teeth)-C
​DP133T​​(# of teeth)-C

​PIC Design
P16-3-(# of teeth)-C
​P13-3-(# of teeth)-C

WM Berg
AC64U-
AC64V-​​

Omnicomponents
64AB2S(# of teeth)-C
64AB2A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

64 Pitch Anti-Backlash Gear: Compact Hub
​1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP173T
​DP143T​​

​PIC Design
P17-3-
​P14-3-

WM Berg
AP64W-
AP64X-

Omnicomponents
64AB3S
64AB3A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​Allied Devices
DP173T(# of teeth)-C
​DP143T​​​(# of teeth)-C

​PIC Design
P17-3-(# of teeth)-C
​P14-3-(# of teeth)-C

​WM Berg
AC64W-
AC64X-

Omnicomponents
64AB3S(# of teeth)-C
64AB3A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

72 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP155T
​DP125T

​PIC Design
P15-5-
​P12-5-​

WM Berg
AP72S-
AP72T-

Omnicomponents
72AB1S
72AB1A

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​Allied Devices
DP155T(# of teeth)-C
​DP125T(# of teeth)-C

​PIC Design
P15-5-(# of teeth)-C
​P12-5-​​​(# of teeth)-C

WM Berg
AC72S-
AC72T-

Omnicomponents
72AB1S(# of teeth)-C
72AB1A(# of teeth)-C

​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

72 Pitch Anti-Backlash Gear: Compact Hub

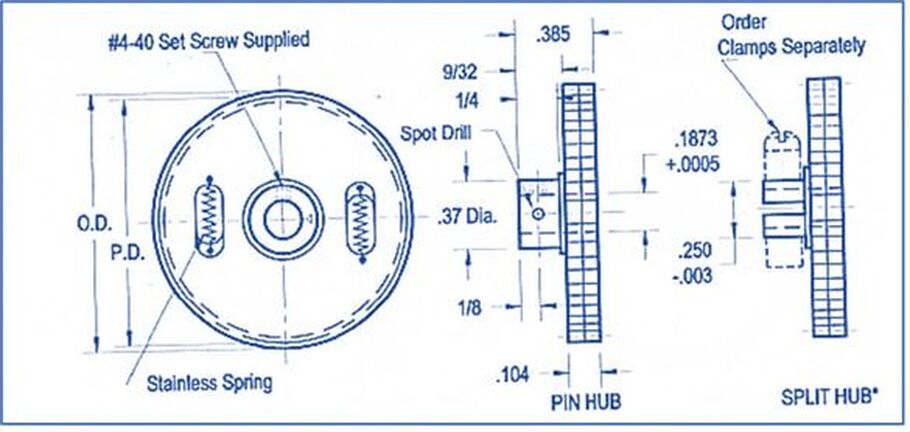

​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

​Pin Hub

Allied Devices
DP165T
​DP135T

​PIC Design
P16-5-
​P13-5-​​

WM Berg
AP72U-
AP72V-

Omnicomponents
72AB2S
72AB2A

​​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP165T(# of teeth)-C
​DP135T(# of teeth)-C

​​PIC Design
P16-5-(# of teeth)-C
​P13-5-​​​(# of teeth)-C

WM Berg
AC72U-
AC72V-

​Omnicomponents
72AB2S(# of teeth)-C
72AB2A(# of teeth)-C

​​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

72 Pitch Anti-Backlash Gear: Compact Hub
​1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP175T
​DP145T

​​PIC Design
P17-5-
​P14-5-​​

WM Berg
AP72W-
AP72X-

Omnicomponents
72AB3S
72AB3A

​​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

​Split Hub

​​Allied Devices
DP175T(# of teeth)-C
​DP145T(# of teeth)-C

​​PIC Design
P17-5-(# of teeth)-C
​P14-5-​​​​(# of teeth)-C

WM Berg
AC72W-
AC72X-

​Omnicomponents
72AB3S(# of teeth)-C
72AB3A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

80 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP156T
​DP126T

​PIC Design
P15-6-
​P12-6-​​

Omnicomponents
80AB1S
80AB1A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP156T(# of teeth)-C​
​DP126T(# of teeth)-C

​​PIC Design
P15-6-(# of teeth)-C
​P12-6-​​(# of teeth)-C​​

Omnicomponents
80AB1S(# of teeth)-C
80AB1A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

80 Pitch Anti-Backlash Gear: Compact Hub
​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP166T
​DP136T

​​PIC Design
P16-6-
​P13-6-​​

Omnicomponents
80AB2S
80AB2A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP166T(# of teeth)-C
​DP136T(# of teeth)-C

​​​PIC Design
P16-6-(# of teeth)-C
​P13-6-​​​(# of teeth)-C

Omnicomponents
80AB2S(# of teeth)-C
80AB2A(# of teeth)-C

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

80 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP176T
​DP146T

​​​PIC Design
P17-6-
​P14-6-​​

Omnicomponents
80AB3S
80AB3A

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

​Split Hub

​Allied Devices
DP176T(# of teeth)-C
​DP146T(# of teeth)-C

​​​PIC Design
P17-6-(# of teeth)-C
​P14-6-​​​(# of teeth)-C

Omnicomponents
80AB3S(# of teeth)-C
80AB3A(# of teeth)-C

​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

96 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

​Pin Hub

​Allied Devices
DP157T
​DP127T

​PIC Design
P15-7-
​P12-7-​​

WM Berg
AP96S-
AP96T-

Omnicomponents
96AB1S
96AB1A

​​Gear Material
303 Stainless Steel
2024-T4 Aluminum

​Split Hub

​Allied Devices
DP157T(# of teeth)-C
​DP127T(# of teeth)-C

​​PIC Design
P15-7-(# of teeth)-C
​P12-7-​​​(# of teeth)-C

​WM Berg
AC96S-
AC96T-

Omnicomponents
96AB1S(# of teeth)-C
96AB1A(# of teeth)-C

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

96 Pitch Anti-Backlash Gear: Compact Hub
​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP167T
​DP137T

PIC Design
P16-7-
​P13-7-​​

WM Berg
AP96U-
AP96V-

Omnicomponents
96AB2S
96AB2A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​Allied Devices
DP167T(# of teeth)-C
​DP137T(# of teeth)-C

​PIC Design
P16-7-(# of teeth)-C
​P13-7-​​​(# of teeth)-C

​WM Berg
AC96U-
AC96V-

Omnicomponents
96AB2S(# of teeth)-C
96AB2A(# of teeth)-C

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

96 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP177T
​DP147T

​PIC Design
P17-7-
​P14-7-​​​

WM Berg
AP96W-
AP96X-

Omnicomponents
96AB3S
96AB3A

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

Allied Devices
DP177T(# of teeth)-C
​DP147T​​(# of teeth)-C

​​PIC Design
P17-7-(# of teeth)-C
​P14-7-​​​​(# of teeth)-C

WM Berg
AC96W-
AC96X-

Omnicomponents
96AB3S(# of teeth)-C
96AB3A(# of teeth)-C

Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

120 Pitch Anti-Backlash Gear: Compact Hub
​1/8" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

​Allied Devices
DP159T
​DP129T

Omnicomponents
120AB1S
120AB1A

Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​Allied Devices
DP159T(# of teeth)
​DP129T(# of teeth)

Omnicomponents
120AB1S(# of teeth)
120AB1A(# of teeth)

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

120 Pitch Anti-Backlash Gear: Compact Hub
​3/16" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

​Pin Hub

Allied Devices
DP169T
​DP139T

Omnicomponents
120AB2S
120AB2A

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​Allied Devices
DP169T(# of teeth)
​DP139T(# of teeth)

​Omnicomponents
120AB2S(# of teeth)
120AB2A(# of teeth)

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---

​120 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore   .104" Face   20˚ Pressure Angle
​AGMA 10​
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized

Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
​
complete part number by placing number of teeth after manufacturer's prefix

Pin Hub

Allied Devices
DP179T
​DP149T

​Omnicomponents
120AB3S
120AB3A

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

Split Hub

​​Allied Devices
DP169T(# of teeth)
​DP139T(# of teeth)

Omnicomponents
120AB3S(# of teeth)
120AB3A(# of teeth)

​Gear Material
303 Stainless Steel
2024-T4 Aluminum

---
