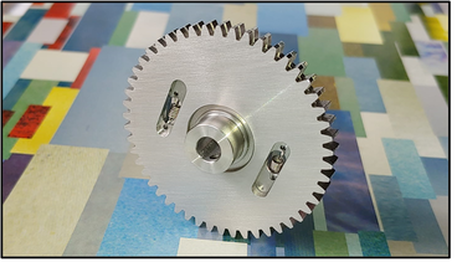

32 Pitch Anti-Backlash Gears
|
|
32 Pitch Anti-Backlash Gear:
Compact Hub
1/4" Bore, 3/16" Face,
20˚ Pressure Angle
32 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore 3/16" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
1/4" Bore 3/16" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP174T40 DP144T40 DP174T42 DP144T42 DP174T44 DP144T44 DP174T45 DP144T45 DP174T46 DP144T46 DP174T48 DP144T48 DP174T50 DP144T50 DP174T52 DP144T52 DP174T54 DP144T54 DP174T55 DP144T55 DP174T56 DP144T56 DP174T58 DP144T58 DP174T60 DP144T60 DP174T62 DP144T62 DP174T64 DP144T64 DP174T65 DP144T65 DP174T70 DP144T70 DP174T72 DP144T72 DP174T75 DP144T75 DP174T80 DP144T80 DP174T85 DP144T85 DP174T96 DP144T96 |
PIC Design
P17-4-40 P14-4-40 P17-4-45 P14-4-45 P17-4-48 P14-4-48 P17-4-50 P14-4-50 P17-4-55 P14-4-55 P17-4-56 P14-4-56 P17-4-60 P14-4-60 P17-4-64 P14-4-64 P17-4-65 P14-4-65 P17-4-70 P14-4-70 P17-4-72 P14-4-72 P17-4-75 P14-4-75 P17-4-80 P14-4-80 P17-4-85 P14-4-85 |
WM Berg
AP32M-40 AP32Q-40 AP32M-45 AP32Q-45 AP32M-48 AP32Q-48 AP32M-50 AP32Q-50 AP32M-55 AP32Q-55 AP32M-56 AP32Q-56 AP32M-60 AP32Q-60 AP32M-64 AP32Q-64 AP32M-65 AP32Q-65 AP32M-70 AP32Q-70 AP32M-72 AP32Q-72 AP32M-75 AP32Q-75 AP32M-80 AP32Q-80 AP32M-85 AP32Q-85 |
Omnicomponents
32AB4S40 32AB4A40 32AB4S42 32AB4A42 32AB4S44 32AB4A44 32AB4S45 32AB4A45 32AB4S46 32AB4A46 32AB4S48 32AB4A48 32AB4S50 32AB4A50 32AB4S52 32AB4A52 32AB4S54 32AB4A54 32AB4S55 32AB4A55 32AB4S56 32AB4A56 32AB4S58 32AB4A58 32AB4S60 32AB4A60 32AB4S62 32AB4A62 32AB4S64 32AB4A64 32AB4S65 32AB4A65 32AB4S70 32AB4A70 32AB4S72 32AB4A72 32AB4S75 32AB4A75 32AB4S80 32AB4A80 32AB4S85 32AB4A85 32AB4S96 32AB4A96 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
