80 Pitch Hubless Spur Gears

Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote

Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference

Alternate materials and dimensions available
80 Pitch Spur Gears

Pin Hub

Bore: 3/8"
Face: 1/8"

Materials
  • 303 Stainless Steel
  • 2024-T4 Aluminum Anodized

20˚ Pressure Angle

AGMA 10

Made in the USA
​Contact: vic@omnicomponentscorp.com

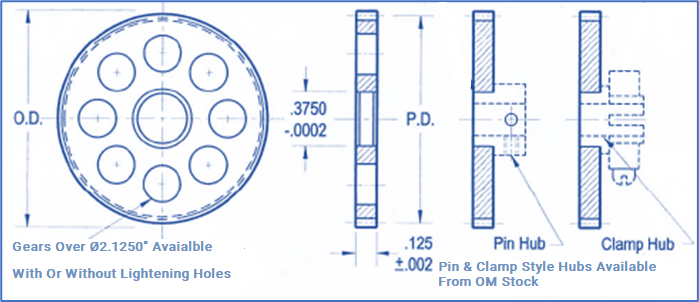

80 Pitch Hubless Spur Gear 3/8" Bore, 1/8" Face
Gear Formulae

Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500

Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
​(20+2)/16=1.375
