Precision Worms
|
|
|

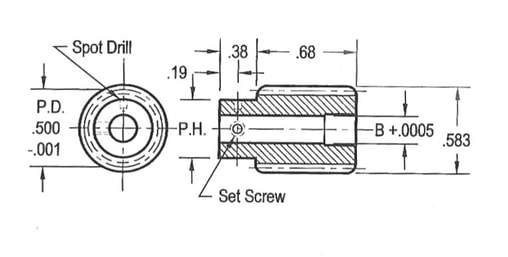

24 Pitch Worm
Material: 303 Stainless Steel Right Hand P.H.: .400 Spot Drill: #60 Set Screw: #4-40 |
|
SINGLE THREAD
Lead: .1309
Lead Angle: 4° - 46'
Pressure Angle: 14½°
Lead: .1309
Lead Angle: 4° - 46'
Pressure Angle: 14½°
|
Allied Devices
DQ22C3 DQ22D4 |
WM Berg
W24S-4S |
Omnicomponents
24W2498S 24W3123S |
Bore
.2498 .3123 |
DOUBLE THREAD
Lead: .2618
Lead Angle: 9° - 28'
Pressure Angle: 20°
|
Allied Devices
DQ24C3 DQ24D4 |
WM Berg
W24S-4D |
Omnicomponents
24W2498D 24W3123D |
Bore
.2498 .3123 |
QUADRUPLE THREAD
Lead: .5236
Lead Angle: 18° - 26'
Pressure Angle: 25°
|
Allied Devices
DQ26C3 DQ26D4 |
WM Berg
W24S-4F |
Omnicomponents
24W2498Q 24W3123Q |
Bore
.2498 .3123 |
|

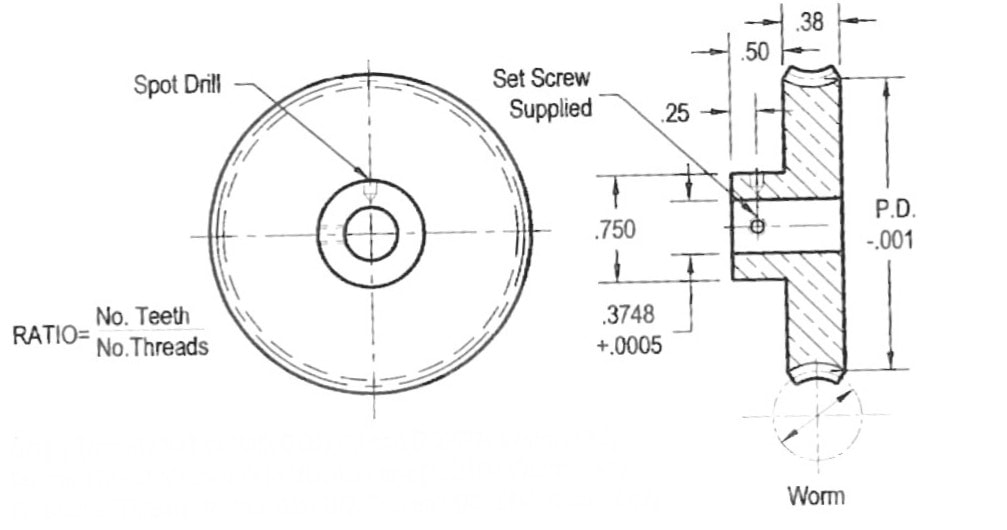

24 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Pin Hub 3/8" Bore |
|
SINGLE THREAD
Circular Pitch: .1309
Helix Angle: 4° - 46'
Pressure Angle: 14½°
|
Allied Devices
DQ21F20 DQ21F30 DQ21F40 DQ21F50 DQ21F60 DQ21F72 DQ21F80 DQ21F96 DQ21F100 |
WM Berg
W24B35-S20 W24B35-S30 W24B35-S40 W24B35-S50 W24B35-S60 W24B35-S72 W24B35-S80 W24B35-S90 W24B35-S100 |
Omnicomponents
24WG3748S20 24WG3748S30 24WG3748S40 24WG3748S50 24WG3748S60 24WG3748S72 24WG3748S80 24WG3748S90 24WG3748S96 24WG3748S100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
DOUBLE THREAD
Circular Pitch: .2618
Helix Angle: 9° - 28'
Pressure Angle: 20°
|
Allied Devices
DQ23F20 DQ23F30 DQ23F40 DQ23F50 DQ23F60 DQ23F72 DQ23F80 DQ23F96 DQ23F100 |
WM Berg
W24B35-D20 W24B35-D30 W24B35-D40 W24B35-D50 W24B35-D60 W24B35-D72 W24B35-D80 W24B35-D90 W24B35-D100 |
Omnicomponents
24WG3748D20 24WG3748D30 24WG3748D40 24WG3748D50 24WG3748D60 24WG3748D72 24WG3748D80 24WG3748D90 24WG3748D96 24WG3748D100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
QUADRUPLE THREAD
Circular Pitch: .5236
Helix Angle: 18° - 26'
Pressure Angle: 25°
|
Allied Devices
DQ25F20 DQ25F30 DQ25F40 DQ25F50 DQ25F60 DQ25F72 DQ25F80 DQ25F96 DQ25F100 |
WM Berg
W24B35-F20 W24B35-F30 W24B35-F40 W24B35-F50 W24B35-F60 W24B35-F72 W24B35-F80 W24B35-F90 W24B35-F100 |
Omnicomponents
24WG3748Q20 24WG3748Q30 24WG3748Q40 24WG3748Q50 24WG3748Q60 24WG3748Q72 24WG3748Q80 24WG3748Q90 24WG3748Q96 24WG3748Q100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
|

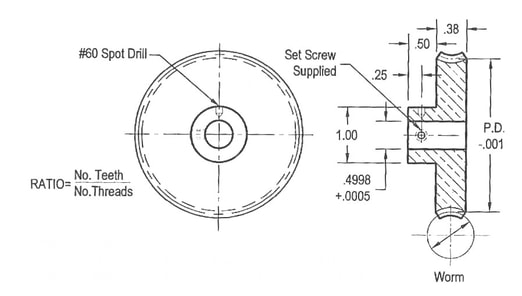

24 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Pin Hub 1/2" Bore |
|
SINGLE THREAD
Circular Pitch: .1309
Helix Angle: 4° - 46'
Pressure Angle: 14½°
Circular Pitch: .1309
Helix Angle: 4° - 46'
Pressure Angle: 14½°
|
Allied Devices
DQ21G20 DQ21G30 DQ21G40 DQ21G50 DQ21G60 DQ21G72 DQ21G80 DQ21G96 DQ21G100 |
WM Berg
W24B37-S20 W24B37-S30 W24B37-S40 W24B37-S50 W24B37-S60 W24B37-S72 W24B37-S80 W24B37-S90 W24B37-S100 |
Omnicomponents
24WG4998S20 24WG4998S30 24WG4998S40 24WG4998S50 24WG4998S60 24WG4998S72 24WG4998S80 24WG4998S90 24WG4998S96 24WG4998S100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
DOUBLE THREAD
Circular Pitch: .2518
Helix Angle: 9° - 28'
Pressure Angle: 20°
|
Allied Devices
DQ23G20 DQ23G30 DQ23G40 DQ23G50 DQ23G60 DQ23G72 DQ23G80 DQ23G96 DQ23G100 |
WM Berg
W24B37-D20 W24B37-D30 W24B37-D40 W24B37-D50 W24B37-D60 W24B37-D72 W24B37-D80 W24B37-D90 W24B37-D100 |
Omnicomponents
24WG4998D20 24WG4998D30 24WG4998D40 24WG4998D50 24WG4998D60 24WG4998D72 24WG4998D80 24WG4998D90 24WG4998D96 24WG4998SD100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
QUADRUPLE THREAD
Circular Pitch: .5236
Helix Angle: 18° - 26'
Pressure Angle: 25°
|
Allied Devices
DQ25G20 DQ25G30 DQ25G40 DQ25G50 DQ25G60 DQ25G72 DQ25G80 DQ25G96 DQ25G100 |
WM Berg
W24B37-F20 W24B37-F30 W24B37-F40 W24B37-F50 W24B37-F60 W24B37-F72 W24B37-F80 W24B37-F90 W24B37-F100 |
Omnicomponents
24WG4998Q20 24WG4998Q30 24WG4998Q40 24WG4998Q50 24WG4998Q60 24WG4998Q72 24WG4998Q80 24WG4998Q90 24WG4998Q96 24WG4998SQ100 |
PD
.833 1.250 1.667 2.083 2.500 3.000 3.333 3.750 4.000 4.167 |
Teeth
20 30 40 50 60 72 80 90 96 100 |
