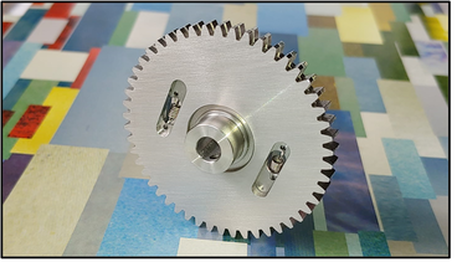

64 Pitch Anti-Backlash Gears
|
|
64 Pitch Anti-Backlash Gear 1/8" Bore, .104" Face
64 Pitch Anti-Backlash Gear: Compact Hub
1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
1/8" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP153T85 DP123T85 DP153T90 DP123T90 DP153T95 DP123T95 DP153T96 DP123T96 DP153T100 DP123T100 DP153T105 DP123T105 DP153T108 DP123T108 DP153T110 DP123T110 DP153T115 DP123T115 DP153T120 DP123T120 DP153T125 DP123T125 DP153T128 DP123T128 DP153T130 DP123T130 DP153T135 DP123T135 DP153T140 DP123T140 DP153T145 DP123T145 DP153T150 DP123T150 DP153T155 DP123T155 DP153T160 DP123T160 DP153T170 DP123T170 DP153T176 DP123T176 DP153T192 DP123T192 |
PIC Design
P15-3-85 P12-3-85 P15-3-90 P12-3-90 P15-3-95 P12-3-95 P15-3-96 P12-3-96 P15-3-100 P12-3-100 P15-3-105 P12-3-105 P15-3-108 P12-3-108 P15-3-110 P12-3-110 P15-3-115 P12-3-115 P15-3-120 P12-3-120 P15-3-125 P12-3-125 P15-3-128 P12-3-128 P15-3-130 P12-3-130 P15-3-140 P12-3-140 P15-3-150 P12-3-150 P15-3-160 P12-3-160 P15-3-170 P12-3-170 P15-3-176 P12-3-176 |
WM Berg
AP64S-85 AP64T-85 AP64S-90 AP64T-90 AP64S-95 AP64T-95 AP64S-96 AP64T-96 AP64S-100 AP64T-100 AP64S-105 AP64T-105 AP64S-108 AP64T-108 AP64S-110 AP64T-110 AP64S-115 AP64T-115 AP64S-120 AP64T-120 AP64S-125 AP64T-125 AP64S-128 AP64T-128 AP64S-130 AP64T-130 AP64S-140 AP64T-140 AP64S-150 AP64T-150 AP64S-160 AP64T-160 AP64S-170 AP64T-170 AP64S-176 AP64T-176 AP64S-180 AP64T-180 AP64S-190 AP64T-190 AP64S-192 AP64T-192 AP64S-200 AP64T-200 |
Omnicomponents
64AB1S85 64AB1A85 64AB1S90 64AB1A90 64AB1S95 64AB1A95 64AB1S96 64AB1A96 64AB1S100 64AB1A100 64AB1S105 64AB1A105 64AB1S108 64AB1A108 64AB1S110 64AB1A110 64AB1S115 64AB1A115 64AB1S120 64AB1A120 64AB1S125 64AB1A125 64AB1S128 64AB1A128 64AB1S130 64AB1A130 64AB1S135 64AB1A135 64AB1S140 64AB1A140 64AB1S145 64AB1A145 64AB1S150 64AB1A150 64AB1S155 64AB1A155 64AB1S160 64AB1A160 64AB1S170 64AB1A170 64AB1S176 64AB1A176 64AB1S180 64AB1A180 64AB1S190 64AB1A190 64AB1S192 64AB1A192 64AB1S200 64AB1A200 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
64 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
64 Pitch Anti-Backlash Gear: Compact Hub
3/16" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
*Add -C to part numbers for Split Hub configuration
|
Allied Devices
DP163T85 DP133T85 DP163T90 DP133T90 DP163T95 DP133T95 DP163T96 DP133T96 DP163T100 DP133T100 DP163T105 DP133T105 DP163T108 DP133T108 DP163T110 DP133T110 DP163T115 DP133T115 DP163T120 DP133T120 DP163T125 DP133T125 DP163T128 DP133T128 DP163T130 DP133T130 DP163T135 DP133T135 DP163T140 DP133T140 DP163T145 DP133T145 DP163T150 DP133T150 DP163T155 DP133T155 DP163T160 DP133T160 DP163T170 DP133T170 DP163T176 DP133T176 DP163T192 DP133T192 |
PIC Design
P16-3-85 P13-3-85 P16-3-90 P13-3-90 P16-3-95 P13-3-95 P16-3-96 P13-3-96 P16-3-100 P13-3-100 P16-3-105 P13-3-105 P16-3-108 P13-3-108 P16-3-110 P13-3-110 P16-3-115 P13-3-115 P16-3-120 P13-3-120 P16-3-125 P13-3-125 P16-3-128 P13-3-128 P16-3-130 P13-3-130 P16-3-140 P13-3-140 P16-3-150 P13-3-150 P16-3-160 P13-3-160 P16-3-170 P13-3-170 P16-3-176 P13-3-176 |
WM Berg
AP64U-85 AP64V-85 AP64U-90 AP64V-90 AP64U-95 AP64V-95 AP64U-96 AP64V-96 AP64U-100 AP64V-100 AP64U-105 AP64V-105 AP64U-108 AP64V-108 AP64U-110 AP64V-110 AP64U-115 AP64V-115 AP64U-120 AP64V-120 AP64U-125 AP64V-125 AP64U-128 AP64V-128 AP64U-130 AP64V-130 AP64U-140 AP64V-140 AP64U-150 AP64V-150 AP64U-160 AP64V-160 AP64U-170 AP64V-170 AP64U-176 AP64V-176 AP64U-180 AP64V-180 AP64U-190 AP64V-190 AP64U-192 AP64V-192 AP64U-200 AP64V-200 |
Omnicomponents
64AB2S85 64AB2A85 64AB2S90 64AB2A90 64AB2S95 64AB2A95 64AB2S96 64AB2A96 64AB2S100 64AB2A100 64AB2S105 64AB2A105 64AB2S108 64AB2A108 64AB2S110 64AB2A110 64AB2S115 64AB2A115 64AB2S120 64AB2A120 64AB2S125 64AB2A125 64AB2S128 64AB2A128 64AB2S130 64AB2A130 64AB2S135 64AB2A135 64AB2S140 64AB2A140 64AB2S145 64AB2A145 64AB2S150 64AB2A150 64AB2S155 64AB2A155 64AB2S160 64AB2A160 64AB2S170 64AB2A170 64AB2S176 64AB2A176 64AB2S180 64AB2A180 64AB2S190 64AB2A190 64AB2S192 64AB2A192 64AB2S200 64AB2A200 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
64 Pitch Anti-Backlash Gear 1/4" Bore, .104" Face
64 Pitch Anti-Backlash Gear: Compact Hub
1/4" Bore .104" Face 20˚ Pressure Angle
AGMA 10
Material Hubs: 303 Stainless Steel
Gears: 303 Stainless Steel or 2024-T4 Aluminum Anodized
Outside Diameter = (Number of Teeth + 2) / Diametrical Pitch
Pitch Diameter = Number of Teeth / Diametrical Pitch
complete part number by placing number of teeth after manufacturer's prefix
|
Allied Devices
DP173T85 DP143T85 DP173T90 DP143T90 DP173T95 DP143T95 DP173T96 DP143T96 DP173T100 DP143T100 DP173T105 DP143T105 DP173T108 DP143T108 DP173T110 DP143T110 DP173T115 DP143T115 DP173T120 DP143T120 DP173T125 DP143T125 DP173T128 DP143T128 DP173T130 DP143T130 DP173T135 DP143T135 DP173T140 DP143T140 DP173T145 DP143T145 DP173T150 DP143T150 DP173T155 DP143T155 DP173T160 DP143T160 DP173T170 DP143T170 DP173T176 DP143T176 DP173T192 DP143T192 |
PIC Design
P17-3-85 P14-3-85 P17-3-90 P14-3-90 P17-3-95 P14-3-95 P17-3-96 P14-3-96 P17-3-100 P14-3-100 P17-3-105 P14-3-105 P17-3-108 P14-3-108 P17-3-110 P14-3-110 P17-3-115 P14-3-115 P17-3-120 P14-3-120 P17-3-125 P14-3-125 P17-3-128 P14-3-128 P17-3-130 P14-3-130 P17-3-140 P14-3-140 P17-3-150 P14-3-150 P17-3-160 P14-3-160 P17-3-170 P14-3-170 P17-3-176 P14-3-176 |
WM Berg
AP64W-85 AP64X-85 AP64W-90 AP64X-90 AP64W-95 AP64X-95 AP64W-96 AP64X-96 AP64W-100 AP64X-100 AP64W-105 AP64X-105 AP64W-108 AP64X-108 AP64W-110 AP64X-110 AP64W-115 AP64X-115 AP64W-120 AP64X-120 AP64W-125 AP64X-125 AP64W-128 AP64X-128 AP64W-130 AP64X-130 AP64W-140 AP64X-140 AP64W-150 AP64X-150 AP64W-160 AP64X-160 AP64W-170 AP64X-170 AP64W-176 AP64X-176 AP64W-180 AP64X-180 AP64W-190 AP64X-190 AP64W-192 AP64X-192 AP64W-200 AP64X-200 |
Omnicomponents
64AB3S85 64AB3A85 64AB3S90 64AB3A90 64AB3S95 64AB3A95 64AB3S96 64AB3A96 64AB3S100 64AB3A100 64AB3S105 64AB3A105 64AB3S108 64AB3A108 64AB3S110 64AB3A110 64AB3S115 64AB3A115 64AB3S120 64AB3A120 64AB3S125 64AB3A125 64AB3S128 64AB3A128 64AB3S130 64AB3A130 64AB3S135 64AB3A135 64AB3S140 64AB3A140 64AB3S145 64AB3A145 64AB3S150 64AB3A150 64AB3S155 64AB3A155 64AB3S160 64AB3A160 64AB3S170 64AB3A170 64AB3S176 64AB3A176 64AB3S180 64AB3A180 64AB3S190 64AB3A190 64AB3S192 64AB3A192 64AB3S200 64AB3A200 |
Gear Material
303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. 303SS 2024-T4 Alum. |
