Retaining Rings
Use Omnicomponents' Part Numbers or Reference Any Manufacturers' Part Number In Your Request For Quote Allied Devices / PIC Design / WM Berg/ Omnicomponents Corp. Part Number Cross-Reference Alternate materials or dimensions available upon request |
|
|
External Retaining Rings
Materials:
|
|
Beryllium Copper
|
Allied Devices
DZ2D1 1001 DZ2D2 1003 |
PIC Design
Z2-1 Z2-2 |
WM Berg
Q2-12 Q2-15 Q2-18 Q2-23 |
Omnicomponents
RREC125 RREC156 RREC188 RREC219 RREC236 |
Shaft
.125 .156 .188 .219 6mm |
T
.010 .010 .015 .015 .015 |
G
.117 .146 .175 .205 .222 |
W
.012 .012 .018 .018 .018 |
PH 15-7 MO Stainless Steel
|
Allied Devices
DZ2D3 1005 DZ2D4 1007 DZ2D5 1009 1010 DZ2D6 1012 1013 DZ2D7 1015 DZ2D8 DZ2D9 1018 DZ2D10 1020 1021 |
PIC Design
Z2-3 Z2-5 Z2-6 |
WM Berg
Q2-25 Q2-31 Q2-34 Q2-37 Q2-39 Q2-50 Q2-62-P Q2-75 Q2-87 Q2-100 Q2-112 Q2-125 Q2-156 |
Omnicomponents
RRES250 RRES281 RRES312 RRES344 RRES375 RRES394 RRES406 RRES438 RRES500 RRES562 RRES594 RRES625 RRES688 RRES750 RRES875 RRES938 RRES1000 RRES1125 RRES1250 RRES1500 RRES1563 RRES2000 |
Shaft
.250 .281 .312 .344 .375 10mm .406 .438 .500 .562 .594 .625 .688 .750 .875 .938 1.000 1.125 1.250 1.500 1.563 2.000 |
T
.025 .025 .025 .025 .025 .025 .025 .025 .035 .035 .035 .035 .042 .042 .042 .042 .042 .050 .050 .050 .062 .062 |
G
.230 .261 .290 .321 .352 .369 .382 .412 .468 .530 .559 .588 .646 .704 .821 .882 .940 1.059 1.176 1.406 1.468 1.886 |
W
.029 .029 .029 .029 .029 .029 .029 .029 .039 .039 .039 .039 .046 .046 .046 .046 .046 .056 .056 .056 .068 .068 |
Carbon Steel Plated
|
WM Berg
Q2-50-CP Q2-62-CP Q2-87-CP Q2-112-CP Q2-125-CP Q2-156-CP Q2-200-CP Q2-237-CP Q2-300-CP |
Omnicomponents
RREP500 RREP625 RREP875 RREP1125 RREP1250 RREP1563 RREP2000 RREP2375 RREP3000 |
Shaft
.500 .625 .875 1.125 1.250 1.563 2.000 2.375 3.000 |
T
.035 .035 .042 .050 .050 .062 .062 .078 .093 |
G
.468 .588 .821 1.059 1.176 1.468 1.886 2.239 2.838 |
W
.039 .039 .046 .056 .056 .068 .068 .086 .103 |
|

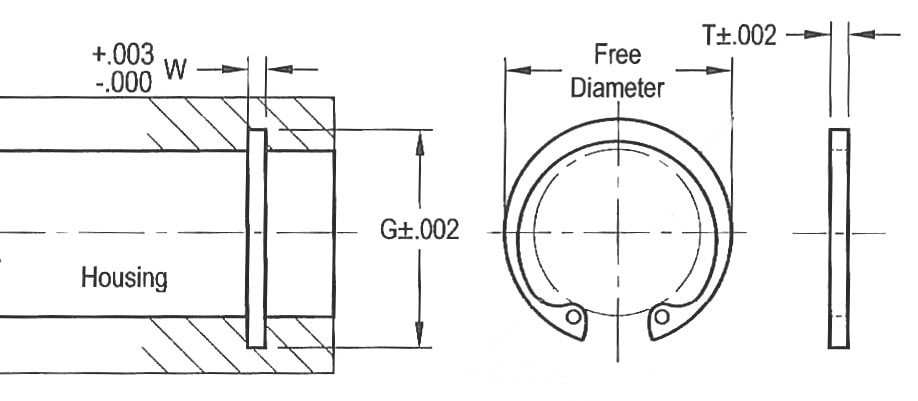

Internal Retaining Rings Material: PH 15-7 MO Stainless Steel |
|
|
Allied Devices
DZ1D7 DZ1D8 DZ1D1 1031 1032 DZ1D2 1034 1035 DZ1D3 1037 DZ1D4 DZ1D5 DZ1D6 1040 |
PIC Design
Z1-1 Z1-2 Z1-3 Z1-5 |
WM Berg
Q4-25 Q4-31 Q4-37 Q4-50 Q4-62 Q4-75 Q4-87 Q4-100 Q4-112 |
Omnicomponents
RRHS250 RRHS312 RRHS375 RRHS438 RRHS453 RRHS500 RRHS512 RRHS562 RRHS625 RRHS688 RRHS750 RRHS875 RRHS1000 RRHS1125 |
Housing Ø
.250 .312 .375 .438 .453 .500 .512 .562 .625 .688 .750 .875 1.000 1.125 |
Free Ø
.280 .346 .415 .482 .498 .548 .560 .620 .694 .763 .831 .971 1.111 1.249 |
T
.015 .015 .025 .025 .025 .035 .035 .035 .035 .035 .035 .042 .042 .050 |
G
.268 .330 .397 .461 .477 .530 .542 .596 .665 .732 .796 .931 1.066 1.197 |
W
.018 .018 .029 .029 .029 .039 .039 .039 .039 .039 .039 .046 .046 .056 |
|

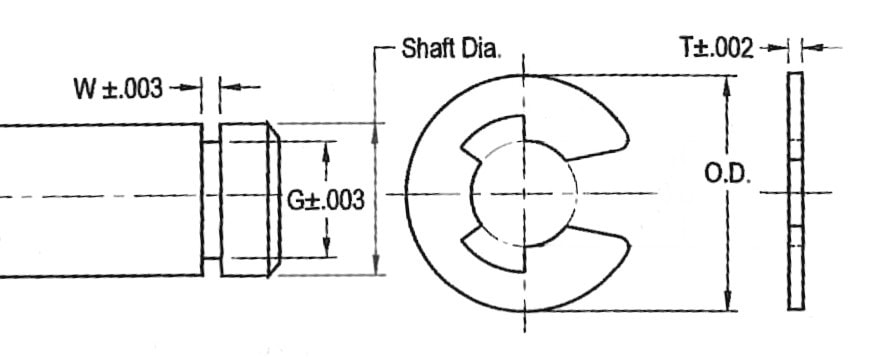

External-E Retaining Rings Snap On Design Materials:
|
|
|
Allied Devices
*1044 1045 DZ3D7 DZ3D1 1048 DZ3D2 DZ3D3 DZ3D4 DZ3D5 1053 DZ3D6 |
PIC Design
Z3-7 Z3-1 Z3-8 Z3-2 Z3-3 Z3-4 Z3-5 Z3-6 |
WM Berg
Q1-6 Q1-9 Q-12 Q1-15 Q1-18 Q1-25 Q1-31 Q1-37 Q1-43 Q1-50 Q1-62 Q1-75 Q1-87 Q1-98 |
Omnicomponents
*ERRC040 ERRS062 ERRS094 ERRS125 ERRS156 ERRS188 ERRS250 ERRS312 ERRS375 ERRS438 ERRS500 ERRS625 ERRS750 ERRS875 ERRS1000 |
Shaft
.040 .062 .094 .125 .156 .188 .250 .312 .375 .438 .500 .625 .750 .875 1.000 |
T
.010 .010 .015 .015 .025 .025 .025 .025 .035 .035 .042 .044 .050 .050 .050 |
OD
.079 .140 .187 .230 .282 .335 .527 .500 .660 .687 .800 .94 1.12 1.30 1.50 |
G
.026 .052 .074 .095 .116 .147 .210 .250 .303 .343 .396 .485 .580 .675 .835 |
W
.012 .012 .018 .018 .029 .029 .029 .029 .039 .039 .046 .046 .056 .056 .056 |
|

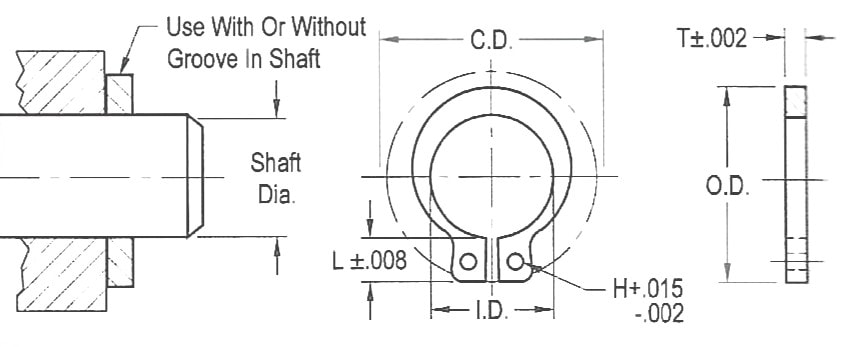

Gripping External Retaining Rings Material: PH 15-7 MO Stainless Steel |
|
|
Allied Devices
DZ5D1 DZ5D2 DZ5D3 DZ5D4 DZ5D5 |
PIC Design
Z5-1 Z5-2 Z5-3 Z5-4 Z5-5 |
WM Berg
Q7-12 Q7-15 Q7-18 Q7-25 Q7-31 Q7-37 Q7-43 Q7-50 Q7-62 Q7-75 |
Omnicomponents
GRRS125 GRRS156 GRRS187 GRRS250 GRRS312 GRRS375 GRRS438 GRRS500 GRRS625 GRRS750 |
Shaft
.125 .156 .187 .250 .312 .375 .438 .500 .625 .750 |
O.D.
.268 .307 .364 .437 .553 .620 .701 .768 .948 1.115 |
I.D.
.120 .181 .238 .354 .470 |
C.D.
.33 .36 .44 .49 .68 .74 .81 .90 1.06 1.32 |
T
.025 .025 .035 .035 .042 .042 .050 .050 .062 .062 |
L
.078 .097 .097 .141 .158 |
H
.042 .051 .051 .078 .078 |
|

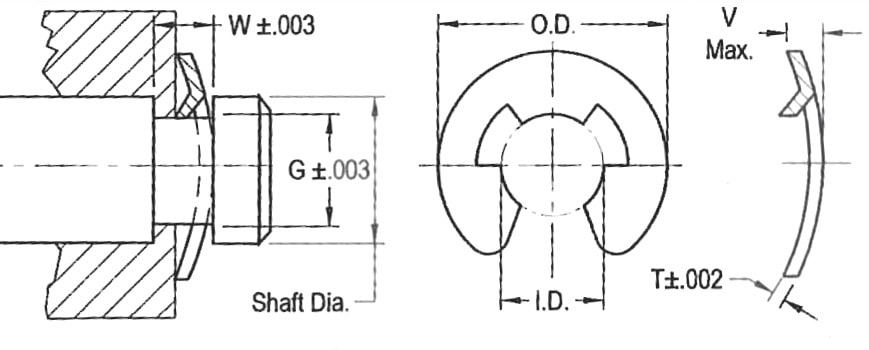

Bowed External-E Retaining Rings Snap On Design Material: PH 15-7 MO Stainless Steel |
|
|
Allied Devices
DZ4D1 DZ4D2 DZ4D3 DZ4D4 DZ4D5 DZ4D6 1077 1078 1079 |
PIC Design
Z4-1 Z4-2 Z4-3 Z4-4 Z4-5 Z4-6 |
WM Berg
Q3-12 Q3-18 Q3-25 Q3-31 Q3-37 Q3-50 Q3-62 Q3-75 Q3-98 |
Omnicomponents
BRRS125 BRRS187 BRRS250 BRRS312 BRRS375 BRRS500 BRRS625 BRRS750 BRRS1000 |
Shaft
.125 .187 .250 .312 .375 .500 .625 .750 1.000 |
O.D.
.230 .335 .527 .500 .660 .800 .940 1.120 1.500 |
I.D.
.094 .145 .207 .243 .300 .392 .480 .574 .822 |
T
.010 .015 .025 .025 .035 .042 .042 .050 .050 |
V Max
.033 .043 .063 .065 .076 .093 .098 .112 .112 |
G
.095 .147 .210 .250 .303 .396 .485 .580 .835 |
W
.022 .030 .049 .047 .060 .073 .077 .085 .085 |
