Precision Worms
|
|
|

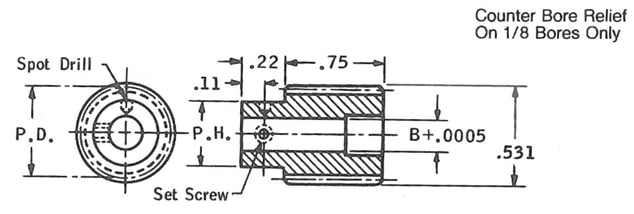

64 Pitch Worm
Material: 303 Stainless Steel Right Hand P.D.: .5000 P.H. 1/8" Bore: .312 P.H. 3/16" Bore: .375 P.H. 1/4" Bore: .437 Spot Drill 1/8" Bore: #69 Spot Drill 3/16" Bore: #60 Spot Drill 1/4" Bore: #50 Set Screw 1/8" Bore: #2-56 Set Screw 3/16" Bore: #4-40 Set Screw 1/4" Bore: #6-32 |
|
SINGLE THREAD
Lead: .04908
Lead Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ2A1 DQ2B2 DQ2C3 |
PIC Design
Q2-1 Q2-2 Q2-3 |
WM Berg
W64S-2S W64S-3S W64S-4S |
Omnicomponents
64W1248S 64W1873S 64W2498S |
Bore
.1248 .1873 .2498 |
DOUBLE THREAD
Lead: .09817
Lead Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ4A1 DQ4B2 DQ4C3 |
PIC Design
Q4-1 Q4-2 Q4-3 |
WM Berg
W64S-2D W64S-3D W64S-4D |
Omnicomponents
64W1248D 64W1873D 64W2498D |
Bore
.1248 .1873 .2498 |
QUADRUPLE THREAD
Lead: .19635
Lead Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ6A1 DQ6B2 DQ6C3 |
PIC Design
Q6-1 Q6-2 Q6-3 |
WM Berg
W64S-2F W64S-3F W64S-4F |
Omnicomponents
64W1248Q 64W1873Q 64W2498Q |
Bore
.1248 .1873 .2498 |
|

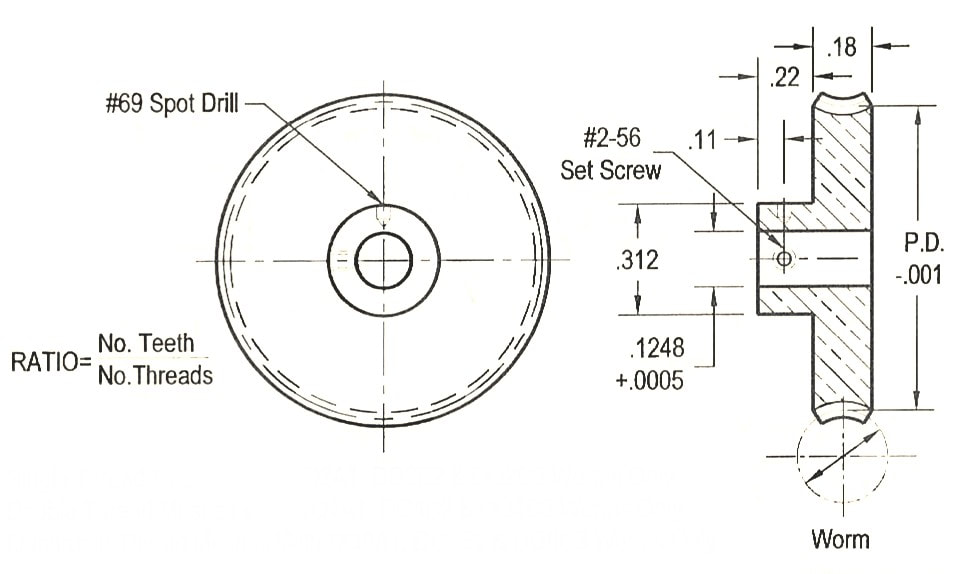

64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Pin Hub 1/8" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1A40 DQ1A45 DQ1A50 DQ1A55 DQ1A60 DQ1A65 DQ1A70 DQ1A75 DQ1A80 DQ1A85 DQ1A90 DQ1A95 DQ1A100 DQ1A105 DQ1A110 DQ1A115 DQ1A120 |
PIC Design
Q1-14 Q1-15 Q1-1 Q1-16 Q1-2 Q1-17 Q1-3 Q1-18 Q1-4 |
WM Berg
W64B13-S40 W64B13-S50 W64B13-S60 W64B13-S70 W64B13-S80 W64B13-S90 W64B13-S100 W64B13-S110 W64B13-S120 W64B13-S180 W64B13-S360 |
Omnicomponents
64WG1248S40 64WG1248S45 64WG1248S50 64WG1248S55 64WG1248S60 64WG1248S65 64WG1248S70 64WG1248S75 64WG1248S80 64WG1248S85 64WG1248S90 64WG1248S95 64WG1248S100 64WG1248S105 64WG1248S110 64WG1248S115 64WG1248S120 64WG1248S180 64WG1248S360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.813 5.625 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3A40 DQ3A45 DQ3A50 DQ3A55 DQ3A60 DQ3A65 DQ3A70 DQ3A75 DQ3A80 DQ3A85 DQ3A90 DQ3A95 DQ3A100 DQ3A105 DQ3A110 DQ3A115 DQ3A120 |
PIC Design
Q3-14 Q3-15 Q3-1 Q3-16 Q3-2 Q3-17 Q3-3 Q3-18 Q3-4 |
WM Berg
W64B13-D40 W64B13-D50 W64B13-D60 W64B13-D70 W64B13-D80 W64B13-D90 W64B13-D100 W64B13-D110 W64B13-D120 W64B13-D180 W64B13-D360 |
Omnicomponents
64WG1248S40 64WG1248S45 64WG1248S50 64WG1248S55 64WG1248S60 64WG1248S65 64WG1248S70 64WG1248S75 64WG1248S80 64WG1248S85 64WG1248S90 64WG1248S95 64WG1248S100 64WG1248S105 64WG1248S110 64WG1248S115 64WG1248S120 64WG1248S180 64WG1248S360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.813 5.625 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ5A40 DQ5A45 DQ5A50 DQ5A55 DQ5A60 DQ5A65 DQ5A70 DQ5A75 DQ5A80 DQ5A85 DQ5A90 DQ5A95 DQ5A100 DQ5A105 DQ5A110 DQ5A115 DQ5A120 |
PIC Design
Q5-14 Q5-15 Q5-1 Q5-16 Q5-2 Q5-17 Q5-3 Q5-18 Q5-4 |
WM Berg
W64B13-F40 W64B13-F50 W64B13-F60 W64B13-F70 W64B13-F80 W64B13-F90 W64B13-F100 W64B13-F110 W64B13-F120 W64B13-F180 W64B13-F360 |
Omnicomponents
64WG1248Q40 64WG1248Q45 64WG1248Q50 64WG1248Q55 64WG1248Q60 64WG1248Q65 64WG1248Q70 64WG1248Q75 64WG1248Q80 64WG1248Q85 64WG1248Q90 64WG1248Q95 64WG1248Q100 64WG1248Q105 64WG1248Q110 64WG1248Q115 64WG1248Q120 64WG1248Q180 64WG1248Q360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.813 5.625 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
|

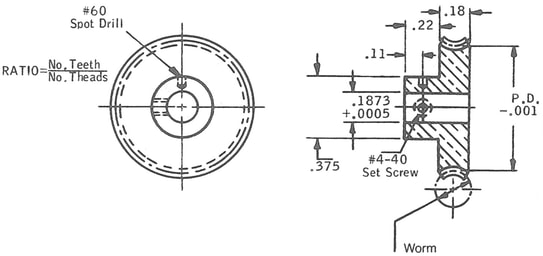

64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Pin Hub 3/16" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1B40 DQ1B45 DQ1B50 DQ1B55 DQ1B60 DQ1B65 DQ1B70 DQ1B75 DQ1B80 DQ1B85 DQ1B90 DQ1B95 DQ1B100 DQ1B105 DQ1B110 DQ1B115 DQ1B120 |
PIC Design
Q1-19 Q1-20 Q1-5 Q1-21 Q1-6 Q1-22 Q1-7 Q1-23 Q1-8 |
WM Berg
W64B21-S40 W64B21-S50 W64B21-S60 W64B21-S70 W64B21-S80 W64B21-S90 W64B21-S100 W64B21-S110 W64B21-S120 |
Omnicomponents
64WG1873S40 64WG1873S45 64WG1873S50 64WG1873S55 64WG1873S60 64WG1873S65 64WG1873S70 64WG1873S75 64WG1873S80 64WG1873S85 64WG1873S90 64WG1873S95 64WG1873S100 64WG1873S105 64WG1873S110 64WG1873S115 64WG1873S120 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3B40 DQ3B45 DQ3B50 DQ3B55 DQ3B60 DQ3B65 DQ3B70 DQ3B75 DQ3B80 DQ3B85 DQ3B90 DQ3B95 DQ3B100 DQ3B105 DQ3B110 DQ3B115 DQ3B120 |
PIC Design
Q3-19 Q3-20 Q3-5 Q3-21 Q3-6 Q3-22 Q3-7 Q3-23 Q3-8 |
WM Berg
W64B21-D40 W64B21-D50 W64B21-D60 W64B21-D70 W64B21-D80 W64B21-D90 W64B21-D100 W64B21-D110 W64B21-D120 |
Omnicomponents
64WG1873D40 64WG1873D45 64WG1873D50 64WG1873D55 64WG1873D60 64WG1873D65 64WG1873D70 64WG1873D75 64WG1873D80 64WG1873D85 64WG1873D90 64WG1873D95 64WG1873D100 64WG1873D105 64WG1873D110 64WG1873D115 64WG1873D120 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ5B40 DQ5B45 DQ5B50 DQ5B55 DQ5B60 DQ5B65 DQ5B70 DQ5B75 DQ5B80 DQ5B85 DQ5B90 DQ5B95 DQ5B100 DQ5B105 DQ5B110 DQ5B115 DQ5B120 |
PIC Design
Q5-19 Q5-20 Q5-5 Q5-21 Q5-6 Q5-22 Q5-7 Q5-23 Q5-8 |
WM Berg
W64B21-F40 W64B21-F50 W64B21-F60 W64B21-F70 W64B21-F80 W64B21-F90 W64B21-F100 W64B21-F110 W64B21-F120 |
Omnicomponents
64WG1873Q40 64WG1873Q45 64WG1873Q50 64WG1873Q55 64WG1873Q60 64WG1873Q65 64WG1873Q70 64WG1873Q75 64WG1873Q80 64WG1873Q85 64WG1873Q90 64WG1873Q95 64WG1873Q100 64WG1873Q105 64WG1873Q110 64WG1873Q115 64WG1873Q120 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
|

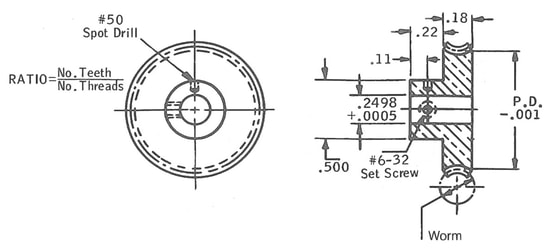

64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Pin Hub 1/4" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1C40 DQ1C45 DQ1C50 DQ1C55 DQ1C60 DQ1C65 DQ1C70 DQ1C75 DQ1C80 DQ1C85 DQ1C90 DQ1C95 DQ1C100 DQ1C105 DQ1C110 DQ1C115 DQ1C120 DQ1C180 DQ1C360 |
PIC Design
Q1-24 Q1-25 Q1-9 Q1-26 Q1-10 Q1-27 Q1-11 Q1-28 Q1-12 Q1-13 |
WM Berg
W64B29-S40 W64B29-S50 W64B29-S60 W64B29-S70 W64B29-S80 W64B29-S90 W64B29-S100 W64B29-S110 W64B29-S120 |
Omnicomponents
64WG2498S40 64WG2498S45 64WG2498S50 64WG2498S55 64WG2498S60 64WG2498S65 64WG2498S70 64WG2498S75 64WG2498S80 64WG2498S85 64WG2498S90 64WG2498S95 64WG2498S100 64WG2498S105 64WG2498S110 64WG2498S115 64WG2498S120 64WG2498S180 64WG2498S360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3C40 DQ3C45 DQ3C50 DQ3C55 DQ3C60 DQ3C65 DQ3C70 DQ3C75 DQ3C80 DQ3C85 DQ3C90 DQ3C95 DQ3C100 DQ3C105 DQ3C110 DQ3C115 DQ3C120 DQ3C180 DQ3C360 |
PIC Design
Q3-24 Q3-25 Q3-9 Q3-26 Q3-10 Q3-27 Q3-11 Q3-28 Q3-12 Q3-13 |
WM Berg
W64B29-D40 W64B29-D50 W64B29-D60 W64B29-D70 W64B29-D80 W64B29-D90 W64B29-D100 W64B29-D110 W64B29-D120 |
Omnicomponents
64WG2498D40 64WG2498D45 64WG2498D50 64WG2498D55 64WG2498D60 64WG2498D65 64WG2498D70 64WG2498D75 64WG2498D80 64WG2498D85 64WG2498D90 64WG2498D95 64WG2498D100 64WG2498D105 64WG2498D110 64WG2498D115 64WG2498D120 64WG2498D180 64WG2498D360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ5C40 DQ5C45 DQ5C50 DQ5C55 DQ5C60 DQ5C65 DQ5C70 DQ5C75 DQ5C80 DQ5C85 DQ590 DQ5C95 DQ5C100 DQ5C105 DQ5C110 DQ5C115 DQ5C120 DQ5C180 DQ5C360 |
PIC Design
Q5-24 Q5-25 Q5-9 Q5-26 Q5-10 Q5-27 Q5-11 Q5-28 Q5-12 Q5-13 |
WM Berg
W64B29-F40 W64B29-F50 W64B29-F60 W64B29-F70 W64B29-F80 W64B29-F90 W64B29-F100 W64B29-F110 W64B29-F120 |
Omnicomponents
64WG2498Q40 64WG2498Q45 64WG2498Q50 64WG2498Q55 64WG2498Q60 64WG2498Q65 64WG2498Q70 64WG2498Q75 64WG2498Q80 64WG2498Q85 64WG2498Q90 64WG2498Q95 64WG2498Q100 64WG2498Q105 64WG2498Q110 64WG2498Q115 64WG2498Q120 64WG2498Q180 64WG2498Q360 |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
|

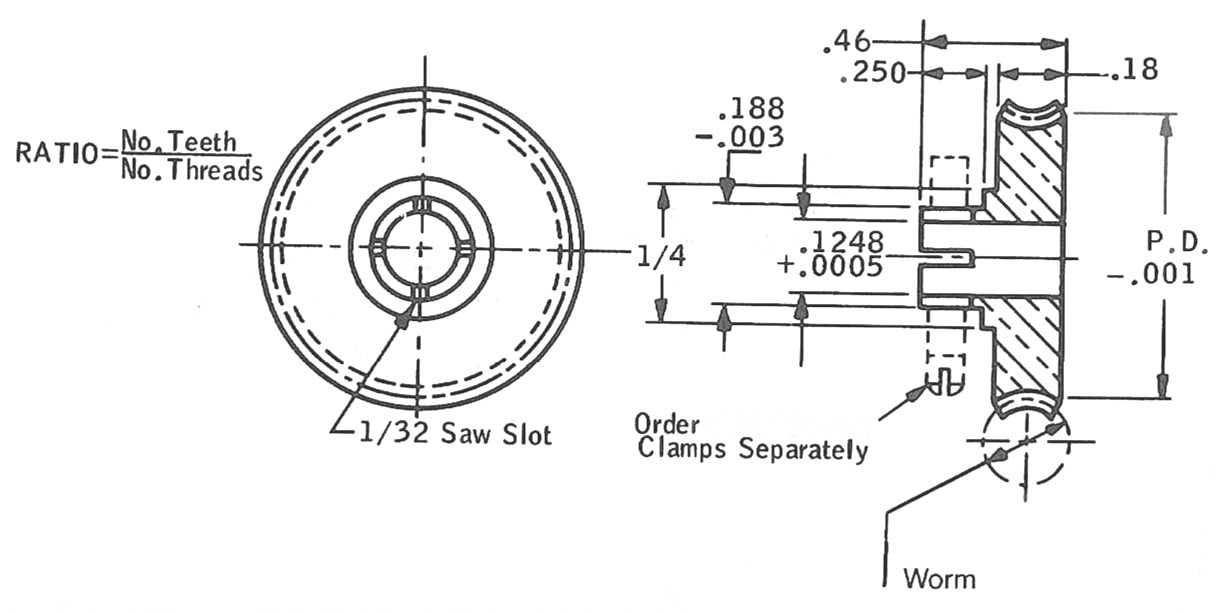

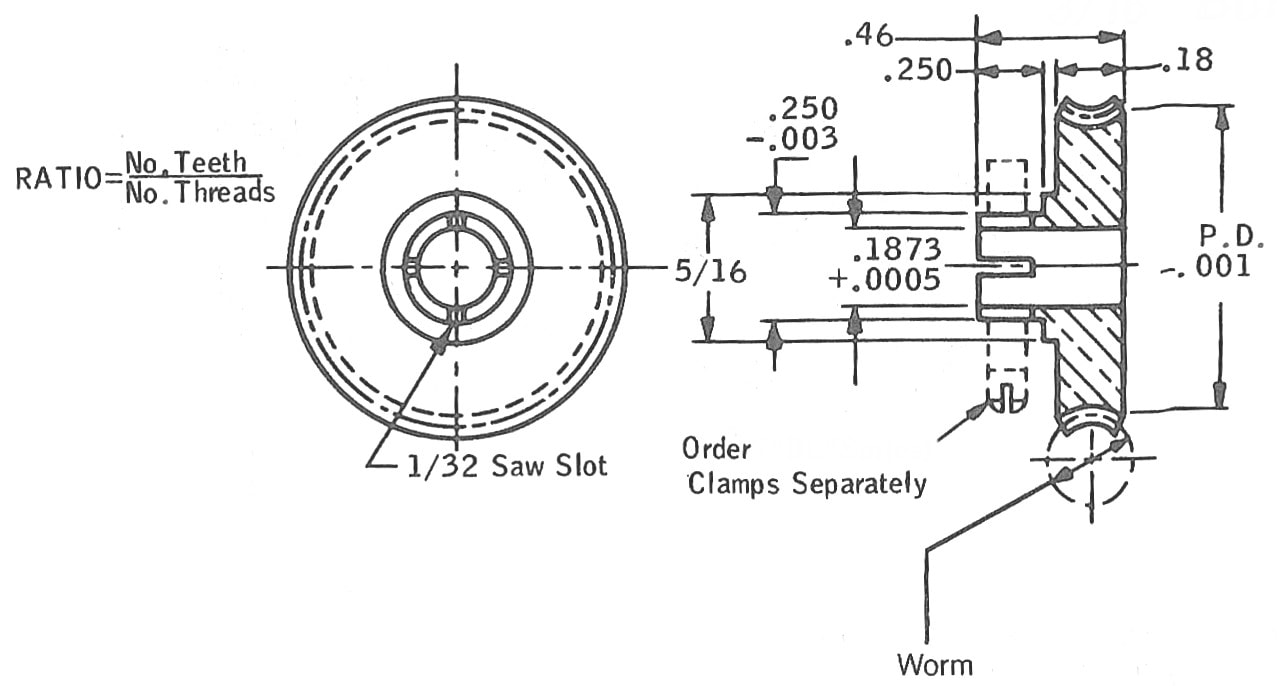

64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Split Hub 1/8" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1A40C DQ1A45C DQ1A50C DQ1A55C DQ1A60C DQ1A65C DQ1A70C DQ1A75C DQ1A80C DQ1A85C DQ1A90C DQ1A95C DQ1A100C DQ1A105C DQ1A110C DQ1A115C DQ1A120C |
PIC Design
Q1-1-C Q1-2-C Q1-3-C Q1-4-C |
WM Berg
W64B13-S40-C W64B13-S50-C W64B13-S60-C W64B13-S70-C W64B13-S80-C W64B13-S90-C W64B13-S100-C W64B13-S110-C W64B13-S120-C W64B13-S1280-C W64B13-S360-C |
Omnicomponents
64WG1248S40C 64WG1248S45C 64WG1248S50C 64WG1248S55C 64WG1248S60C 64WG1248S65C 64WG1248S70C 64WG1248S75C 64WG1248S80C 64WG1248S85C 64WG1248S90C 64WG1248S95C 64WG1248S100C 64WG1248S105C 64WG1248S110C 64WG1248S115C 64WG1248S120C 64WG1248S180C 64WG1248S360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3A40C DQ3A45C DQ3A50C DQ3A55C DQ3A60C DQ3A65C DQ3A70C DQ3A75C DQ3A80C DQ3A85C DQ3A90C DQ3A95C DQ3A100C DQ3A105C DQ3A110C DQ3A115C DQ3A120C |
PIC Design
Q3-1-C Q3-2-C Q3-3-C Q3-4-C |
WM Berg
W64B13-D40-C W64B13-D50-C W64B13-D60-C W64B13-D70-C W64B13-D80-C W64B13-D90-C W64B13-D100-C W64B13-D110-C W64B13-D120-C W64B13-D180-C W64B13-D360-C |
Omnicomponents
64WG1248D40C 64WG1248D45C 64WG1248D50C 64WG1248D55C 64WG1248D60C 64WG1248D65C 64WG1248D70C 64WG1248D75C 64WG1248D80C 64WG1248D85C 64WG1248D90C 64WG1248D95C 64WG1248D100C 64WG1248D105C 64WG1248D110C 64WG1248D115C 64WG1248D120C 64WG1248D180C 64WG1248D360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ5A40C DQ5A45C DQ5A50C DQ5A55C DQ5A60C DQ5A65C DQ5A70C DQ5A75C DQ5A80C DQ5A85C DQ5A90C DQ5A95C DQ5A100C DQ5A105C DQ5A110C DQ5A115C DQ5A120C |
PIC Design
Q5-1-C Q5-2-C Q5-3-C Q5-4-C |
WM Berg
W64B13-F40-C W64B13-F50-C W64B13-F60-C W64B13-F70-C W64B13-F80-C W64B13-F90-C W64B13-F100-C W64B13-F110-C W64B13-F120-C W64B13-F180-C W64B13-F360-C |
Omnicomponents
64WG1248Q40C 64WG1248Q45C 64WG1248Q50C 64WG1248Q55C 64WG1248Q60C 64WG1248Q65C 64WG1248Q70C 64WG1248Q75C 64WG1248Q80C 64WG1248Q85C 64WG1248Q90C 64WG1248Q95C 64WG1248Q100C 64WG1248Q105C 64WG1248Q110C 64WG1248Q115C 64WG1248Q120C 64WG1248Q180C 64WG1248Q360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
|
64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Split Hub 3/16" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1B40C DQ1B45C DQ1B50C DQ1B55C DQ1B60C DQ1B65C DQ1B70C DQ1B75C DQ1B80C DQ1B85C DQ1B90C DQ1B95C DQ1B100C DQ1B105C DQ1B110C DQ1B115C DQ1B120C |
PIC Design
Q1-5-C Q1-6-C Q1-7-C Q1-8-C |
WM Berg
W64B21-S40-C W64B21-S50-C W64B21-S60-C W64B21-S70-C W64B21-S80-C W64B21-S90-C W64B21-S100-C W64B21-S110-C W64B21-S120-C |
Omnicomponents
64WG1873S40C 64WG1873S45C 64WG1873S50C 64WG1873S55C 64WG1873S60C 64WG1873S65C 64WG1873S70C 64WG1873S75C 64WG1873S80C 64WG1873S85C 64WG1873S90C 64WG1873S95C 64WG1873S100C 64WG1873S105C 64WG1873S110C 64WG1873S115C 64WG1873S120C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3B40C DQ3B45C DQ3B50C DQ3B55C DQ3B60C DQ3B65C DQ3B70C DQ3B75C DQ3B80C DQ3B85C DQ3B90C DQ3B95C DQ3B100C DQ3B105C DQ3B110C DQ3B115C DQ3B120C |
PIC Design
Q3-5-C Q3-6-C Q3-7-C Q3-8-C |
WM Berg
W64B21-D40-C W64B21-D50-C W64B21-D60-C W64B21-D70-C W64B21-D80-C W64B21-D90-C W64B21-D100-C W64B21-D110-C W64B21-D120-C |
Omnicomponents
64WG1873D40C 64WG1873D45C 64WG1873D50C 64WG1873D55C 64WG1873D60C 64WG1873D65C 64WG1873D70C 64WG1873D75C 64WG1873D80C 64WG1873D85C 64WG1873D90C 64WG1873D95C 64WG1873D100C 64WG1873D105C 64WG1873D110C 64WG1873D115C 64WG1873D120C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ7B40C DQ7B45C DQ7B50C DQ7B55C DQ7B60C DQ7B65C DQ7B70C DQ7B75C DQ7B80C DQ7B85C DQ7B90C DQ7B95C DQ7B100C DQ7B105C DQ7B110C DQ7B115C DQ7B120C |
PIC Design
Q5-5-C Q5-6-C Q5-7-C Q5-8-C |
WM Berg
W64B21-F40-C W64B21-F50-C W64B21-F60-C W64B21-F70-C W64B21-F80-C W64B21-F90-C W64B21-F100-C W64B21-F110-C W64B21-F120-C |
Omnicomponents
64WG1873Q40C 64WG1873Q45C 64WG1873Q50C 64WG1873Q55C 64WG1873Q60C 64WG1873Q65C 64WG1873Q70C 64WG1873Q75C 64WG1873Q80C 64WG1873Q85C 64WG1873Q90C 64WG1873Q95C 64WG1873Q100C 64WG1873Q105C 64WG1873Q110C 64WG1873Q115C 64WG1873Q120C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 |
|
64 Pitch Worm Gear Material: Bronze QQ-B-637 Alloy 464 Right Hand Split Hub 1/4" Bore |
|
SINGLE THREAD
Circular Pitch: .04908
Helix Angle: 1° - 47'
Pressure Angle: 14½°
|
Allied Devices
DQ1C40C DQ1C45C DQ1C50C DQ1C55C DQ1C60C DQ1C65C DQ1C70C DQ1C75C DQ1C80C DQ1C85C DQ1C90C DQ1C95C DQ1C100C DQ1C105C DQ1C110C DQ1C115C DQ1C120C DQ1C180C DQ1C360C |
PIC Design
Q1-9-C Q1-10-C Q1-11-C Q1-12-C Q1-13-C |
WM Berg
W64B29-S40C W64B29-S50C W64B29-S60C W64B29-S70C W64B29-S80C W64B29-S90C W64B29-S100C W64B29-S110C W64B29-S120C |
Omnicomponents
64WG2498S40C 64WG2498S45C 64WG2498S50C 64WG2498S55C 64WG2498S60C 64WG2498S65C 64WG2498S70C 64WG2498S75C 64WG2498S80C 64WG2498S85C 64WG2498S90C 64WG2498S95C 64WG2498S100C 64WG2498S105C 64WG2498S110C 64WG2498S115C 64WG2498S120C 64WG2498S180C 64WG2498S360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
DOUBLE THREAD
Circular Pitch: .09817
Helix Angle: 3° - 35'
Pressure Angle: 14½°
|
Allied Devices
DQ3C40C DQ3C45C DQ3C50C DQ3C55C DQ3C60C DQ3C65C DQ3C70C DQ3C75C DQ3C80C DQ3C85C DQ3C90C DQ3C95C DQ3C100C DQ3C105C DQ3C110C DQ3C115C DQ3C120C DQ3C180C DQ3C360C |
PIC Design
Q3-9-C Q3-10-C Q3-11-C Q3-12-C Q3-13-C |
WM Berg
W64B29-D40C W64B29-D50C W64B29-D60C W64B29-D70C W64B29-D80C W64B29-D90C W64B29-D100C W64B29-D110C W64B29-D120C |
Omnicomponents
64WG2498D40C 64WG2498D45C 64WG2498D50C 64WG2498D55C 64WG2498D60C 64WG2498D65C 64WG2498D70C 64WG2498D75C 64WG2498D80C 64WG2498D85C 64WG2498D90C 64WG2498D95C 64WG2498SD100C 64WG2498D105C 64WG2498D110C 64WG2498D115C 64WG2498D120C 64WG2498D180C 64WG2498D360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
QUADRUPLE THREAD
Circular Pitch: .19635
Helix Angle: 7° - 11'
Pressure Angle: 14½°
|
Allied Devices
DQ5C40C DQ5C45C DQ5C50C DQ5C55C DQ5C60C DQ5C65C DQ5C70C DQ5C75C DQ5C80C DQ5C85C DQ5C90C DQ5C95C DQ5C100C DQ5C105C DQ5C110C DQ5C115C DQ5C120C DQ5C180C DQ5C360C |
PIC Design
Q5-9-C Q5-10-C Q5-11-C Q5-12-C Q5-13-C |
WM Berg
W64B29-F40C W64B29-F50C W64B29-F60C W64B29-F70C W64B29-F80C W64B29-F90C W64B29-F100C W64B29-F110C W64B29-F120C |
Omnicomponents
64WG2498Q40C 64WG2498Q45C 64WG2498Q50C 64WG2498Q55C 64WG2498Q60C 64WG2498Q65C 64WG2498Q70C 64WG2498Q75C 64WG2498Q80C 64WG2498Q85C 64WG2498Q90C 64WG2498Q95C 64WG2498SQ100C 64WG2498Q105C 64WG2498Q110C 64WG2498Q115C 64WG2498Q120C 64WG2498Q180C 64WG2498Q360C |
PD
.6250 .7031 .7813 .8594 .9375 1.0156 1.0938 1.1719 1.2500 1.3281 1.4063 1.4844 1.5625 1.6406 1.7187 1.7969 1.8750 2.8125 5.6250 |
Teeth
40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 180 360 |
