Precision Ground Shafting
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote
Allied Devices/WM Berg/McMaster Carr/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials, dimensions, & Shaft End Modifications
Available Upon Request, Including:
- Ring Grooves
- Journals
- Milled Flats
- Drill Holes
or Reference Any Manufacturers' Part Number In Your Request For Quote
Allied Devices/WM Berg/McMaster Carr/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials, dimensions, & Shaft End Modifications
Available Upon Request, Including:
- Ring Grooves
- Journals
- Milled Flats
- Drill Holes
|

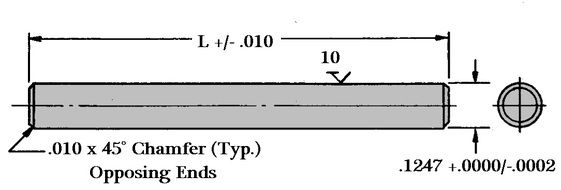

1/8" Precision Increment Shafting
Material: 303 Stainless Steel Diameter: .1247 (+.0000/-.0002) Made in the USA Contact: vic@omnicomponentscorp.com |
|
Allied Devices DA1D10
DA1D11 DA1D12 DA1D13 DA1D15 DA1D16 DA1D17 DA1D18 DA1D20 DA1D21 DA1D22 DA1D23 DA1D25 DA1D26 DA1D27 DA1D28 DA1D30 DA1D31 DA1D32 DA1D33 DA1D35 DA1D36 DA1D37 DA1D38 DA1D40 DA1D41 DA1D42 DA1D43 DA1D45 DA1D46 DA1D47 DA1D48 DA1D50 DA1D51 DA1D52 DA1D53 DA1D55 DA1D56 DA1D57 DA1D58 DA1D60 DA1D61 DA1D62 DA1D63 DA1D65 DA1D66 DA1D67 DA1D68 DA1D70 DA1D71 DA1D72 DA1D73 DA1D75 DA1D76 DA1D77 DA1D78 DA1D80 DA1D81 DA1D82 DA1D83 DA1D85 DA1D86 DA1D87 DA1D88 DA1D90 DA1D91 DA1D92 DA1D93 DA1D95 DA1D96 DA1D97 DA1D98 DA1D100 DA1D101 DA1D102 DA1D103 DA1D105 DA1D106 DA1D107 DA1D108 DA1D110 DA1D111 DA1D112 DA1D113 DA1D115 DA1D116 DA1D117 DA1D118 DA1D120 DA1D121 DA1D122 DA1D123 DA1D125 DA1D126 DA1D127 DA1D128 DA1D130 DA1D131 DA1D132 DA1D133 DA1D135 DA1D136 DA1D137 DA1D138 DA1D140 DA1D141 DA1D142 DA1D143 DA1D145 DA1D146 DA1D147 DA1D148 DA1D150 DA1D151 DA1D152 DA1D153 DA1D155 DA1D156 DA1D157 DA1D158 DA1D160 DA1D161 DA1D162 DA1D163 DA1D165 DA1D166 DA1D167 DA1D168 DA1D170 |
WM Berg
S2-10
S2-11 S2-12 S2-13 S2-15 S2-16 S2-17 S2-18 S2-20 S2-21 S2-22 S2-23 S2-25 S2-26 S2-27 S2-28 S2-30 S2-31 S2-32 S2-33 S2-35 S2-36 S2-37 S2-38 S2-40 S2-41 S2-42 S2-43 S2-45 S2-46 S2-47 S2-48 S2-50 S2-51 S2-52 S2-53 S2-55 S2-56 S2-57 S2-60 S2-62 S2-63 S2-65 S2-66 S2-67 S2-70 S2-72 S2-75 S2-77 S2-80 S2-82 S2-83 S2-85 S2-90 S2-100 S2-110 S2-120 S2-130 S2-140 S2-150 S2-160 S2-180 S2-200 S2-220 S2-240 |
PIC Design
A1-10
A1-11 A1-12 A1-13 A1-15 A1-16 A1-17 A1-18 A1-20 A1-21 A1-22 A1-23 A1-25 A1-26 A1-27 A1-28 A1-30 A1-31 A1-35 A1-40 A1-42 A1-45 A1-50 A1-51 A1-52 A1-53 A1-55 A1-56 A1-57 A1-60 A1-67 A1-90 A1-120 A1-160 |
Omnicomponents
1PS10
1PS11 1PS12 1PS13 1PS15 1PS16 1PS17 1PS18 1PS20 1PS21 1PS22 1PS23 1PS25 1PS26 1PS27 1PS28 1PS30 1PS31 1PS32 1PS33 1PS35 1PS36 1PS37 1PS38 1PS40 1PS41 1PS42 1PS43 1PS45 1PS46 1PS47 1PS48 1PS50 1PS51 1PS52 1PS53 1PS55 1PS56 1PS57 1PS58 1PS60 1PS61 1PS62 1PS63 1PS65 1PS66 1PS67 1PS68 1PS70 1PS71 1PS72 1PS73 1PS75 1PS76 1PS77 1PS78 1PS80 1PS81 1PS82 1PS83 1PS85 1PS86 1PS87 1PS88 1PS90 1PS91 1PS92 1PS93 1PS95 1PS96 1PS97 1PS98 1PS100 1PS101 1PS102 1PS103 1PS105 1PS106 1PS107 1PS108 1PS110 1PS111 1PS112 1PS113 1PS115 1PS116 1PS117 1PS118 1PS120 1PS121 1PS122 1PS123 1PS125 1PS126 1PS127 1PS128 1PS130 1PS131 1PS132 1PS133 1PS135 1PS136 1PS137 1PS138 1PS140 1PS141 1PS142 1PS143 1PS145 1PS146 1PS147 1PS148 1PS150 1PS151 1PS152 1PS153 1PS155 1PS156 1PS157 1PS158 1PS160 1PS161 1PS162 1PS163 1PS165 1PS166 1PS167 1PS168 1PS170 1PS180 1PS200 1PS220 1PS240 |
Length (+/- .010)
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.625 4.750 4.875 5.000 5.125 5.250 5.375 5.500 5.625 5.750 5.875 6.000 6.125 6.250 6.375 6.500 6.625 6.750 6.875 7.000 7.125 7.250 7.375 7.500 7.625 7.750 7.875 8.000 8.125 8.250 8.375 8.500 8.625 8.750 8.875 9.000 9.125 9.250 9.375 9.500 9.625 9.750 9.875 10.000 10.125 10.250 10.375 10.500 10.625 10.750 10.875 11.000 11.125 11.250 11.375 11.500 11.625 11.750 11.875 12.000 12.125 12.250 12.375 12.500 12.625 12.750 12.875 13.000 13.125 13.250 13.375 13.500 13.625 13.750 13.875 14.000 14.125 14.250 14.375 14.500 14.625 14.750 14.875 15.000 15.125 15.250 15.375 15.500 15.625 15.750 15.875 16.000 16.125 16.250 16.375 16.500 16.625 16.750 16.875 17.000 18.000 20.000 22.000 24.000 |

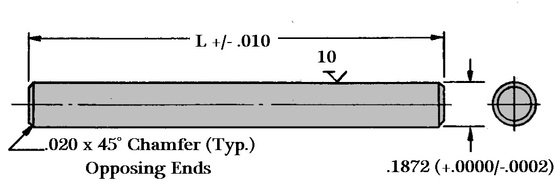

3/16" Diameter Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .1872 (+.0000/-.0002)
Straightness Within .0003 Per inch
Allied Devices
DA2D10
DA2D11 DA2D12 DA2D13 DA2D15 DA2D16 DA2D17 DA2D18 DA2D20 DA2D21 DA2D22 DA2D23 DA2D25 DA2D26 DA2D27 DA2D28 DA2D30 DA2D31 DA2D32 DA2D33 DA2D35 DA2D36 DA2D37 DA2D38 DA2D40 DA2D41 DA2D42 DA2D43 DA2D45 DA2D46 DA2D47 DA2D48 DA2D50 DA2D51 DA2D52 DA2D53 DA2D55 DA2D56 DA2D57 DA2D58 DA2D60 DA2D61 DA2D62 DA2D63 DA2D65 DA2D66 DA2D67 DA2D68 DA2D70 DA2D71 DA2D72 DA2D73 DA2D75 DA2D76 DA2D77 DA2D78 DA2D80 DA2D81 DA2D82 DA2D83 DA2D85 DA2D86 DA2D87 DA2D88 DA2D90 DA2D91 DA2D92 DA2D93 DA2D95 DA2D96 DA2D97 DA2D98 DA2D100 DA2D101 DA2D102 DA2D103 DA2D105 DA2D106 DA2D107 DA2D108 DA2D110 DA2D111 DA2D112 DA2D113 DA2D115 DA2D116 DA2D117 DA2D118 DA2D120 DA2D121 DA2D122 DA2D123 DA2D125 DA2D126 DA2D127 DA2D128 DA2D130 DA2D131 DA2D132 DA2D133 DA2D135 DA2D136 DA2D137 DA2D138 DA2D140 DA2D141 DA2D142 DA2D143 DA2D145 DA2D146 DA2D147 DA2D148 DA2D150 DA2D151 DA2D152 DA2D153 DA2D155 DA2D156 DA2D157 DA2D158 DA2D160 DA2D161 DA2D162 DA2D163 DA2D165 DA2D166 DA2D167 DA2D168 DA2D170 |
WM Berg
S3-10
S3-11 S3-12 S3-13 S3-15 S3-16 S3-17 S3-18 S3-20 S3-21 S3-22 S3-23 S3-25 S3-26 S3-27 S3-28 S3-30 S3-31 S3-32 S3-33 S3-35 S3-36 S3-37 S3-38 S3-40 S3-41 S3-42 S3-43 S3-45 S3-46 S3-47 S3-48 S3-50 S3-51 S3-52 S3-53 S3-55 S3-57 S3-60 S3-62 S3-63 S3-65 S3-66 S3-67 S3-68 S3-70 S3-71 S3-72 S3-75 S3-77 S3-80 S3-81 S3-85 S3-90 S3-95 S3-100 S3-108 S3-110 S3-113 S3-120 S3-126 S3-130 S3-140 S3-150 S3-160 S3-180 S3-200 S3-220 S3-240 |
PIC Design
A2-10
A2-11 A2-12 A2-13 A2-15 A2-16 A2-17 A2-18 A2-20 A2-21 A2-22 A2-23 A2-25 A2-26 A2-27 A2-28 A2-30 A2-31 A2-32 A2-33 A2-35 A2-36 A2-37 A2-40 A2-45 A2-50 A2-52 A2-57 A2-60 A2-62 A2-70 A2-75 A2-80 A2-85 A2-90 A2-100 A2-120 |
Omnicomponents
2PS10
2PS11 2PS12 2PS13 2PS15 2PS16 2PS17 2PS18 2PS20 2PS21 2PS22 2PS23 2PS25 2PS26 2PS27 2PS28 2PS30 2PS31 2PS32 2PS33 2PS35 2PS36 2PS37 2PS38 2PS40 2PS41 2PS42 2PS43 2PS45 2PS46 2PS47 2PS48 2PS50 2PS51 2PS52 2PS53 2PS55 2PS56 2PS57 2PS58 2PS60 2PS61 2PS62 2PS63 2PS65 2PS66 2PS67 2PS68 2PS70 2PS71 2PS72 2PS73 2PS75 2PS76 2PS77 2PS78 2PS80 2PS81 2PS82 2PS83 2PS85 2PS86 2PS87 2PS88 2PS90 2PS91 2PS92 2PS93 2PS95 2PS96 2PS97 2PS98 2PS100 2PS101 2PS102 2PS103 2PS105 2PS106 2PS107 2PS108 2PS110 2PS111 2PS112 2PS113 2PS115 2PS116 2PS117 2PS118 2PS120 2PS121 2PS122 2PS123 2PS125 2PS126 2PS127 2PS128 2PS130 2PS131 2PS132 2PS133 2PS135 2PS136 2PS137 2PS138 2PS140 2PS141 2PS142 2PS143 2PS145 2PS146 2PS147 2PS148 2PS150 2PS151 2PS152 2PS153 2PS155 2PS156 2PS157 2PS158 2PS160 2PS161 2PS162 2PS163 2PS165 2PS166 2PS167 2PS168 2PS170 2PS180 2PS200 2PS220 2PS240 |
Length
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.625 4.750 4.875 5.000 5.125 5.250 5.375 5.500 5.625 5.750 5.875 6.000 6.125 6.250 6.375 6.500 6.625 6.750 6.875 7.000 7.125 7.250 7.375 7.500 7.625 7.750 7.875 8.000 8.125 8.250 8.375 8.500 8.625 8.750 8.875 9.000 9.125 9.250 9.375 9.500 9.625 9.750 9.875 10.000 10.125 10.250 10.375 10.500 10.625 10.750 10.875 11.000 11.125 11.250 11.375 11.500 11.625 11.750 11.875 12.000 12.125 12.250 12.375 12.500 12.625 12.750 12.875 13.000 13.125 13.250 13.375 13.500 13.625 13.750 13.875 14.000 14.125 14.250 14.375 14.500 14.625 14.750 14.875 15.000 15.125 15.250 15.375 15.500 15.625 15.750 15.875 16.000 16.125 16.250 16.375 16.500 16.625 16.750 16.875 17.000 18.000 20.000 22.000 24.000 |

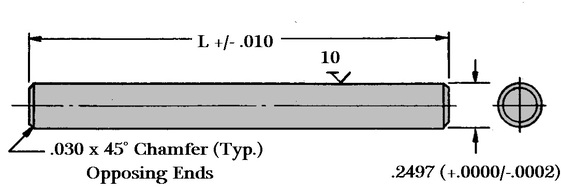

1/4" Diameter Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .2497 (+.0000/-.0002)
Straightness Within .0003 Per Inch
Allied Devices
DA3D10
DA3D11 DA3D12 DA3D13 DA3D15 DA3D16 DA3D17 DA3D18 DA3D20 DA3D21 DA3D22 DA3D23 DA3D25 DA3D26 DA3D27 DA3D28 DA3D30 DA3D31 DA3D32 DA3D33 DA3D35 DA3D36 DA3D37 DA3D38 DA3D40 DA3D41 DA3D42 DA3D43 DA3D45 DA3D46 DA3D47 DA3D48 DA3D50 DA3D51 DA3D52 DA3D53 DA3D55 DA3D56 DA3D57 DA3D58 DA3D60 DA3D61 DA3D62 DA3D63 DA3D65 DA3D66 DA3D67 DA3D68 DA3D70 DA3D71 DA3D72 DA3D73 DA3D75 DA3D76 DA3D77 DA3D78 DA3D80 DA3D81 DA3D82 DA3D83 DA3D85 DA3D86 DA3D87 DA3D88 DA3D90 DA3D91 DA3D92 DA3D93 DA3D95 DA3D96 DA3D97 DA3D98 DA3D100 DA3D101 DA3D102 DA3D103 DA3D105 DA3D106 DA3D107 DA3D108 DA3D110 DA3D111 DA3D112 DA3D113 DA3D115 DA3D116 DA3D117 DA3D118 DA3D120 DA3D121 DA3D122 DA3D123 DA3D125 DA3D126 DA3D127 DA3D128 DA3D130 DA3D131 DA3D132 DA3D133 DA3D135 DA3D136 DA3D137 DA3D138 DA3D140 DA3D141 DA3D142 DA3D143 DA3D145 DA3D146 DA3D147 DA3D148 DA3D150 DA3D151 DA3D152 DA3D153 DA3D155 DA3D156 DA3D157 DA3D158 DA3D160 DA3D161 DA3D162 DA3D163 DA3D165 DA3D166 DA3D167 DA3D168 DA3D170 |
WM Berg
S4-10
S4-11 S4-12 S4-13 S4-15 S4-16 S4-17 S4-18 S4-20 S4-21 S4-22 S4-23 S4-25 S4-26 S4-27 S4-28 S4-30 S4-31 S4-32 S4-33 S4-35 S4-36 S4-37 S4-38 S4-40 S4-41 S4-42 S4-43 S4-45 S4-46 S4-47 S4-48 S4-50 S4-51 S4-52 S4-53 S4-55 S4-56 S4-57 S4-58 S4-60 S4-62 S4-65 S4-67 S4-70 S4-72 S4-75 S4-77 S4-80 S4-82 S4-85 S4-90 S4-95 S4-100 S4-105 S4-110 S4-117 S4-120 S4-130 S4-140 S4-150 S4-160 S4-180 S4-200 S4-220 S4-240 |
PIC Design
A3-10
A3-11 A3-12 A3-13 A3-15 A3-16 A3-17 A3-18 A3-20 A3-21 A3-22 A3-23 A3-25 A3-26 A3-27 A3-28 A3-30 A3-31 A3-32 A3-33 A3-35 A3-36 A3-37 A3-38 A3-40 A3-41 A3-42 A3-43 A3-45 A3-46 A3-47 A3-48 A3-50 A3-51 A3-52 A3-53 A3-55 A3-56 A3-57 A3-58 A3-60 A3-62 A3-63 A3-65 A3-66 A3-70 A3-75 A3-80 A3-85 A3-90 A3-95 A3-100 A3-120 A3-130 A3-140 A3-150 A3-160 |
Omnicomponents
3PS10
3PS11 3PS12 3PS13 3PS15 3PS16 3PS17 3PS18 3PS20 3PS21 3PS22 3PS23 3PS25 3PS26 3PS27 3PS28 3PS30 3PS31 3PS32 3PS33 3PS35 3PS36 3PS37 3PS38 3PS40 3PS41 3PS42 3PS43 3PS45 3PS46 3PS47 3PS48 3PS50 3PS51 3PS52 3PS53 3PS55 3PS56 3PS57 3PS58 3PS60 3PS61 3PS62 3PS63 3PS65 3PS66 3PS67 3PS68 3PS70 3PS71 3PS72 3PS73 3PS75 3PS76 3PS77 3PS78 3PS80 3PS81 3PS82 3PS83 3PS85 3PS86 3PS87 3PS88 3PS90 3PS91 3PS92 3PS93 3PS95 3PS96 3PS97 3PS98 3PS100 3PS101 3PS102 3PS103 3PS105 3PS106 3PS107 3PS108 3PS110 3PS111 3PS112 3PS113 3PS115 3PS116 3PS117 3PS118 3PS120 3PS121 3PS122 3PS123 3PS125 3PS126 3PS127 3PS128 3PS130 3PS131 3PS132 3PS133 3PS135 3PS136 3PS137 3PS138 3PS140 3PS141 3PS142 3PS143 3PS145 3PS146 3PS147 3PS148 3PS150 3PS151 3PS152 3PS153 3PS155 3PS156 3PS157 3PS158 3PS160 3PS161 3PS162 3PS163 3PS165 3PS166 3PS167 3PS168 3PS170 3PS180 3PS200 3PS220 3PS240 |
Length
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.625 4.750 4.875 5.000 5.125 5.250 5.375 5.500 5.625 5.750 5.875 6.000 6.125 6.250 6.375 6.500 6.625 6.750 6.875 7.000 7.125 7.250 7.375 7.500 7.625 7.750 7.875 8.000 8.125 8.250 8.375 8.500 8.625 8.750 8.875 9.000 9.125 9.250 9.375 9.500 9.625 9.750 9.875 10.000 10.125 10.250 10.375 10.500 10.625 10.750 10.875 11.000 11.125 11.250 11.375 11.500 11.625 11.750 11.875 12.000 12.125 12.250 12.375 12.500 12.625 12.750 12.875 13.000 13.125 13.250 13.375 13.500 13.625 13.750 13.875 14.000 14.125 14.250 14.375 14.500 14.625 14.750 14.875 15.000 15.125 15.250 15.375 15.500 15.625 15.750 15.875 16.000 16.125 16.250 16.375 16.500 16.625 16.750 16.875 17.000 18.000 20.000 22.000 24.000 |
5/16" Diameter Precision Ground Shafting
Material: 303Stainless Steel
Diameter: .3122 (+.0000/-.0002)
Straightness Within .0004 Per Inch
Diameter: .3122 (+.0000/-.0002)
Straightness Within .0004 Per Inch
WM Berg
S5-13
S5-15 S5-16 S5-17 S5-18 S5-20 S5-21 S5-22 S5-23 S5-25 S5-26 S5-27 S5-28 S5-30 S5-31 S5-32 S5-33 S5-35 S5-36 S5-37 S5-38 S5-40 S5-41 S5-42 S5-43 S5-45 S5-47 S5-48 S5-50 S5-51 S5-53 S5-55 S5-56 S5-57 S5-58 S5-60 S5-62 S5-65 S5-67 S5-70 S5-72 S5-75 S5-77 S5-80 S5-85 S5-90 S5-95 S5-100 S5-110 S5-120 S5-130 S5-140 S5-150 S5-160 S5-180 S5-200 S5-220 S5-240 |
Omnicomponents
4PS13
4PS15 4PS16 4PS17 4PS18 4PS20 4PS21 4PS22 4PS23 4PS25 4PS26 4PS27 4PS28 4PS30 4PS31 4PS32 4PS33 4PS35 4PS36 4PS37 4PS38 4PS40 4PS41 4PS42 4PS43 4PS45 4PS47 4PS48 4PS50 4PS51 4PS53 4PS55 4PS56 4PS57 4PS58 4PS60 4PS62 4PS65 4PS67 4PS70 4PS72 4PS75 4PS77 4PS80 4PS85 4PS90 4PS95 4PS100 4PS110 4PS120 4PS130 4PS140 4PS150 4PS160 4PS180 4PS200 4PS220 4PS240 |
Length
1.375
1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.750 4.875 5.000 5.125 5.375 5.500 5.625 5.750 5.875 6.000 6.250 6.500 6.750 7.000 7.250 7.500 7.750 8.000 8.500 9.000 9.500 10.000 11.000 12.000 13.000 14.000 15.000 16.000 18.000 20.000 22.000 24.000 |

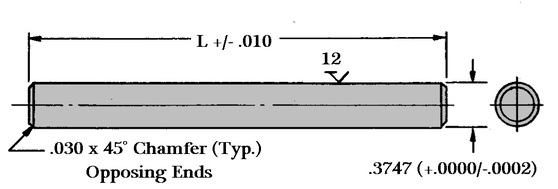

3/8" Diameter Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .3747 (+.0000/-.0002)
Straightness Within .0004 Per Inch
Allied Devices
DA7D20 DA7D21 DA7D22 DA7D23 DA7D25 DA7D26 DA7D27 DA7D28 DA7D30 DA7D31 DA7D32 DA7D33 DA7D35 DA7D36 DA7D37 DA7D38 DA7D40 DA7D41 DA7D42 DA7D43 DA7D45 DA7D46 DA7D47 DA7D48 DA7D50 DA7D51 DA7D52 DA7D53 DA7D55 DA7D56 DA7D57 DA7D58 DA7D60 DA7D62 DA7D65 DA7D67 DA7D70 DA7D72 DA7D75 DA7D77 DA7D80 DA7D82 DA7D85 DA7D87 DA7D90 DA7D92 DA7D95 DA7D97 DA7D100 DA7D105 DA7D110 DA7D120 DA7D130 DA7D140 DA7D150 DA7D160 DA7D170 DA7D180 DA7D190 DA7D200 DA7D210 DA7D220 DA7D230 DA7D240 |
WM Berg
S6-18
S6-20 S6-21 S6-22 S6-23 S6-25 S6-26 S6-27 S6-28 S6-30 S6-31 S6-32 S6-33 S6-35 S6-36 S6-37 S6-38 S6-40 S6-41 S6-42 S6-43 S6-45 S6-46 S6-47 S6-48 S6-50 S6-52 S6-55 S6-57 S6-60 S6-62 S6-65 S6-67 S6-70 S6-72 S6-75 S6-77 S6-80 S6-82 S6-85 S6-87 S6-90 S6-95 S6-100 S6-110 S6-120 S6-130 S6-140 S6-150 S6-160 S6-180 S6-200 S6-220 S6-240 S6-260 S6-280 S6-300 S6-320 S6-340 S6-360 |
PIC Design
A7-20 A7-22 A7-25 A7-27 A7-30 A7-32 A7-35 A7-37 A7-40 A7-42 A7-45 A7-47 A7-50 A7-52 A7-55 A7-57 A7-60 A7-65 A7-80 A7-90 A7-100 A7-110 A7-120 A7-160 A7-200 A7-240 |
Omnicomponents
5PS18
5PS20 5PS21 5PS22 5PS23 5PS25 5PS26 5PS27 5PS28 5PS30 5PS31 5PS32 5PS33 5PS35 5PS36 5PS37 5PS28 5PS40 5PS41 5PS42 5PS43 5PS45 5PS46 5PS47 5PS48 5PS50 5PS51 5PS52 5PS53 5PS55 5PS56 5PS57 5PS58 5PS60 5PS52 5PS65 5PS67 5PS70 5PS72 5PS75 5PS77 5PS80 5PS82 5PS85 5PS87 5PS90 5PS92 5PS95 5PS97 5PS100 5PS105 5PS110 5PS120 5PS130 5PS140 5PS150 5PS160 5PS170 5PS180 5PS190 5PS200 5PS210 5PS220 5PS230 5PS240 5PS260 5PS280 5PS300 5PS320 5PS340 5PS360 |
Length
1.875
2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.625 4.750 4.875 5.000 5.125 5.250 5.375 5.500 5.625 5.750 5.875 6.000 6.250 6.500 6.750 7.000 7.250 7.500 7.750 8.000 8.250 8.500 8.750 9.000 9.250 9.500 9.750 10.000 10.500 11.000 12.000 13.000 14.000 15.000 16.000 17.000 18.000 19.000 20.000 21.000 22.000 23.000 24.000 26.000 28.000 30.000 32.000 34.000 36.000 |

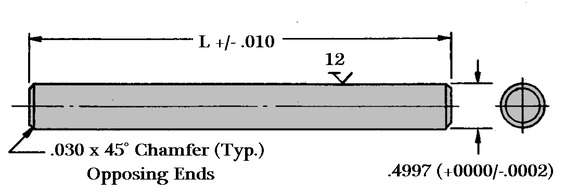

1/2" Diameter Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .4997 (+.0000/-.0002)
Straightness Within .0004 Per Inch
WM Berg
S8-13
S8-15 S8-16 S8-17 S8-18 S8-20 S8-21 S8-22 S8-23 S8-25 S8-26 S8-27 S8-28 S8-30 S8-31 S8-32 S8-33 S8-35 S8-36 S8-37 S8-38 S8-40 S8-41 S8-42 S8-43 S8-45 S8-47 S8-48 S8-50 S8-52 S8-55 S8-57 S8-60 S8-62 S8-65 S8-67 S8-70 S8-72 S8-75 S8-77 S8-80 S8-85 S8-90 S8-95 S8-100 S8-110 S8-120 S8-130 S8-140 S8-150 S8-160 S8-180 S8-200 S8-220 S8-240 S8-260 S8-280 S8-300 S8-320 S8-340 S8-360 |
Omnicomponents
6PS13
6PS15 6PS16 6PS17 6PS18 6PS20 6PS21 6PS22 6PS23 6PS25 6PS26 6PS27 6PS28 6PS30 6PS31 6PS32 6PS33 6PS35 6PS36 6PS37 6PS38 6PS40 6PS41 6PS42 6PS43 6PS45 6PS47 6PS48 6PS50 6PS52 6PS55 6PS57 6PS60 6PS62 6PS65 6PS67 6PS70 6PS72 6PS75 6PS77 6PS80 6PS85 6PS90 6PS95 6PS100 6PS110 6PS120 6PS130 6PS140 6PS150 6PS160 6PS180 6PS200 6PS220 6PS240 6PS260 6PS280 6PS300 6PS320 6PS340 6PS360 |
Length
1.375
1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.125 4.250 4.375 4.500 4.750 4.875 5.000 5.250 5.500 5.750 6.000 6.250 6.500 6.750 7.000 7.250 7.500 7.750 8.000 8.500 9.000 9.500 10.000 11.000 12.000 13.000 14.000 15.000 16.000 18.000 20.000 22.000 24.000 26.000 28.000 30.000 32.000 34.000 36.000 |
1/8" Diameter (+.0000/-.0001) Ultra Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .12475 (+.00000/-.00010)
Straightness Within .0002 Per Inch
Allied Devices
DA4D10
DA4D11 DA4D12 DA4D13 DA4D15 DA4D16 DA4D17 DA4D18 DA4D20 DA4D21 DA4D22 DA4D23 DA4D25 DA4D26 DA4D27 DA4D28 DA4D30 DA4D31 DA4D32 DA4D33 DA4D35 DA4D36 DA4D37 DA4D38 DA4D40 DA4D42 DA4D45 DA4D47 DA4D50 DA4D52 DA4D55 DA4D57 DA4D60 DA4D65 DA4D70 DA4D75 DA4D80 DA4D85 DA4D90 DA4D95 DA4D100 |
WM Berg
S2-10-U
S2-11-U S2-12-U S2-13-U S2-15-U S2-16-U S2-17-U S2-18-U S2-20-U S2-21-U S2-22-U S2-23-U S2-25-U S2-26-U S2-27-U S2-28-U S2-30-U S2-31-U S2-32-U S2-35-U S2-37-U S2-40-U S2-45-U S2-50-U S2-55-U S2-60-U S2-65-U S2-70-U S2-75-U S2-80-U |
PIC Design
A4-10
A4-11 A4-13 A4-17 A4-18 A4-20 A4-32 |
Omnicomponents
1US10
1US11 1US12 1US13 1US15 1US16 1US17 1US18 1US20 1US21 1US22 1US23 1US25 1US26 1US27 1US28 1US30 1US31 1US32 1US33 1US35 1US36 1US37 1US38 1US40 1US42 1US45 1US47 1US50 1US52 1US55 1US57 1US60 1US65 1US70 1US75 1US80 1US85 1US90 1US95 1US100 |
Length
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000 6.500 7.000 7.500 8.000 8.500 9.000 9.500 10.000 |

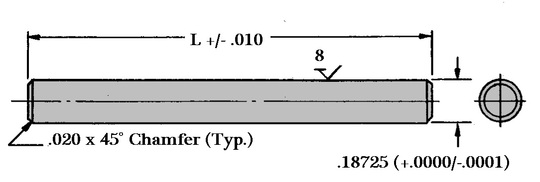

3/16" Diameter (+.0000/-.0001) Ultra Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .18725 (+.0000/-.0001)
Straightness Within .00015 Per Inch
Allied Devices
DA5D10
DA5D11 DA5D12 DA5D13 DA5D15 DA5D16 DA5D17 DA5D18 DA5D20 DA5D21 DA5D22 DA5D23 DA5D25 DA5D26 DA5D27 DA5D28 DA5D30 DA5D31 DA5D32 DA5D33 DA5D35 DA5D36 DA5D37 DA5D38 DA5D40 DA5D42 DA5D45 DA5D47 DA5D50 DA5D52 DA5D55 DA5D57 DA5D60 DA5D65 DA5D70 DA5D75 DA5D80 DA5D85 DA5D90 DA5D95 DA5D100 |
WM Berg
S3-10-U
S3-11-U S3-12-U S3-13-U S3-15-U S3-16-U S3-17-U S3-18-U S3-20-U S3-21-U S3-22-U S3-23-U S3-25-U S3-26-U S3-27-U S3-28-U S3-30-U S3-31-U S3-32-U S3-35-U S3-37-U S3-40-U S3-45-U S3-50-U S3-55-U S3-60-U S3-65-U S3-70-U S3-75-U S3-80-U |
PIC Design
A5-12 A5-15 A5-17 A5-20 A5-30 |
Omnicomponents
2US10
2US11 2US12 2US13 2US15 2US16 2US17 2US18 2US20 2US21 2US22 2US23 2US25 2US26 2US27 2US28 2US30 2US31 2US32 2US33 2US35 2US36 2US37 2US38 2US40 2US42 2US45 2US47 2US50 2US52 2US55 2US57 2US60 2US65 2US70 2US75 2US80 2US85 2US90 2US95 2US100 |
Length
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000 6.500 7.000 7.500 8.000 8.500 9.000 9.500 10.000 |

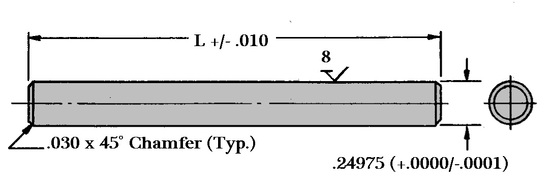

1/4" Diameter (+.0000/-.0001) Ultra Precision Ground Shafting
Material: 303 Stainless Steel
Diameter: .24975 (+.0000/-.0001)
Straightness Within .0002 Per Inch
Allied Devices
DA6D10
DA6D11 DA6D12 DA6D13 DA6D15 DA6D16 DA6D17 DA6D18 DA6D20 DA6D21 DA6D22 DA6D23 DA6D25 DA6D26 DA6D27 DA6D28 DA6D30 DA6D31 DA6D32 DA6D33 DA6D35 DA6D36 DA6D37 DA6D38 DA6D40 DA6D42 DA6D45 DA6D47 DA6D50 DA6D52 DA6D55 DA6D57 DA6D60 DA6D65 DA6D70 DA6D75 DA6D80 DA6D85 DA6D90 DA6D95 DA6D100 |
WM Berg
S4-10-U
S4-11-U S4-12-U S4-13-U S4-15-U S4-16-U S4-17-U S4-18-U S4-20-U S4-21-U S4-22-U S4-23-U S4-25-U S4-27-U S4-30-U S4-31-U S4-32-U S4-33-U S4-35-U S4-36-U S4-37-U S4-40-U S4-45-U S4-50-U S4-55-U S4-60-U S4-65-U S4-70-U S4-75-U S4-80-U S4-85-U S4-90-U S4-100-U |
PIC Design
A6-15 A6-20 A6-25 A6-27 A6-31 A6-35 A6-40 A6-42 |
Omnicomponents
3US10
3US11 3US12 3US13 3US15 3US16 3US17 3US18 3US20 3US21 3US22 3US23 3US25 3US26 3US27 3US28 3US30 3US31 3US32 3US33 3US35 3US36 3US37 3US38 3US40 3US42 3US45 3US47 3US50 3US52 3US55 3US57 3US60 3US65 3US70 3US75 3US80 3US85 3US90 3US95 3US100 |
Length
1.000
1.125 1.250 1.375 1.500 1.625 1.750 1.875 2.000 2.125 2.250 2.375 2.500 2.625 2.750 2.875 3.000 3.125 3.250 3.375 3.500 3.625 3.750 3.875 4.000 4.250 4.500 4.750 5.000 5.250 5.500 5.750 6.000 6.500 7.000 7.500 8.000 8.500 9.000 9.500 10.000 |
|

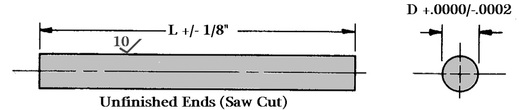

Precision Ground Shafting
Unfinished Ends Material: 303 Stainless Steel Made in the USA Contact: vic@omnicomponentscorp.com |
|
|
|
